Home » Products » CNC PRESS BRAKE » PRESS BRAKE MACHINE

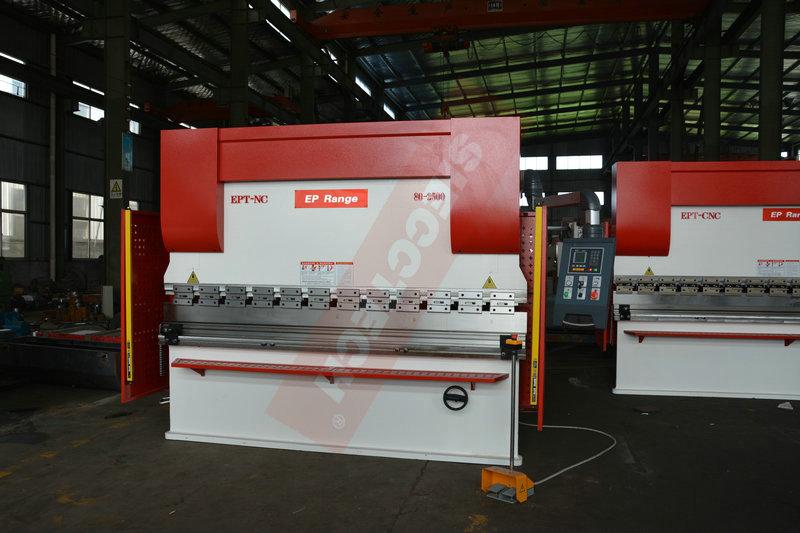

EPT-NC- Pressbrakes 40-1500 63-2000 80-2500 100-2500 100-3200 125-3200 160-3200 160-4000 200-3200 200-4000 300-3200 300-4000 400-3200 400-4000

Nominal Pressure (Tons) 40 63 80 100 100 125 160 160 200 200 300 300 400 400
Length of Table 1500 2000 2500 2500 3200 3200 3200 4000 3200 4000 3200 4000 3200 4000

Width of Table 140 160 180 210 210 210 240 240 250 250 360 360 380 380

Table Height 800 800 800 800 800 800 800 800 800 800 1000 1000 1000 1000

Distance between Frames (mm) 1150 1500 2000 2000 2500 2500 2500 3200 2500 3200 2500 3200 2500 3200

Throat Depth (mm) 200 250 250 320 320 320 320 320 320 320 350 350 400 400

Ram Stroke (mm) 80 90 100 100 100 100 180 180 180 180 200 200 250 250

Open Height (mm) 300 320 370 370 370 370 400 400 420 420 450 450 520 520

Motor Power (KW) 4 5.5 5.5 7.5 7.5 7.5 11 11 15 15 22 22 37 37

Nc System Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D Estun 21D



Weight of Machine (kg) 2500 4000 5700 5800 6500 6800 9000 10000 12000 13000 17000 19000 18500 26000

Dimensions (mm)  Length 1900 2400 2960 2960 3680 3680 3600 4400 3460 4400 3600 4400 3600 4400
Dimensions (mm)  Depth 1300 1450 1450 1500 1550 1550 1650 1650 1990 1700 1850 1850 2000 2000

Dimensions (mm)  Height 1850 2150 2350 2400 2450 2450 2650 2650 2730 2650 3040 3200 3230 3430
