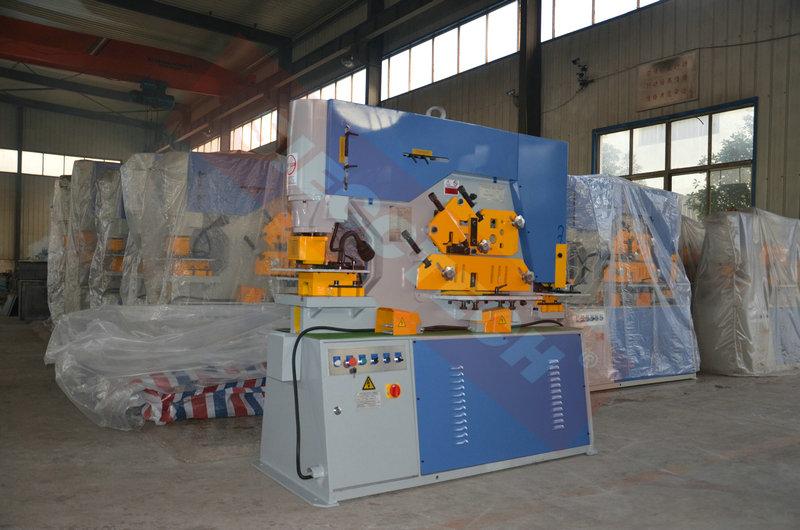

Home » Products » Ironworkers » Q35Y-30 IRONORKER
                                Model Q35Y-16  Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40
Stamping Pressure ton 55 75 110 140 200
Max cutting thickness mm 16 20 25 30 35
Plate strength N/mm2 ≤450 ≤450 ≤450 ≤450 ≤450
Cutting angle °
Shearing size of one stroke mm 16X250                                                                                                          8X400 20X330                                                                                                          10X480 25X330                                                                                                          16X600 30X355 35*400
20X600 25*700
Ram stroke mm 80 80 80 80 100
Number of stroke /min 8 8 6 6 8-24
Throat depth mm 300 355 400 600 600
Punching thickness mm 16 20 25 26 35
Max punching diameter mm 25 30 35 38 40
Power of main motor kw 4 5.5 7.5 11 15
Overall dimensions L-mm 1640 1860 2355 2680 2800
L×W×H W-mm 730 800 960 1040 1160
  H-mm 1770 1900 2090 2300 2400
