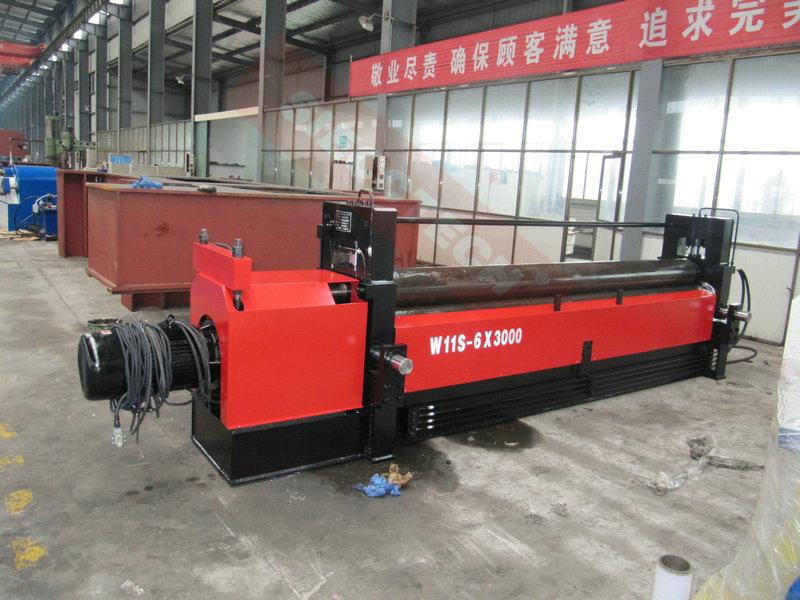

Home » Products » W11S 3 ROLLER PREBENDING » W11S 8X3200 ROLLING MACHINE
Stress 75TONS
Max  rolling  width 3200MM
The working length of the roller 3200MM
Pre bending rolling T6×B3200mm×Φ680mm σs 245 MPa
Normal bending rolling  T8×B3200mm×Φ680mm σs 245 MPa
Remaining length of straight after  fully loaded 2-2.5 times of the plate thickness
Dia of upper-roller  Φ275MM
Dia of downside roller Φ150MM
Center distance between two downside rollers   245MM
Rolling Speed 3.5M/MIN
Up roller pressing Speed 120M/MIN
Support roller quantities  4 pieces(One Group)
Main motor 7.5KW
Moved  motor power 1.5KW
Hydraulic motor power  4KW
Rolling material 42CrMo

Main characters
1.high precision head parts pre-bending
pre-bending the top parts by change the upper roller’s leveling movement distancecan set the straight side length freely.give the pressure directly by upper roller, control the shape of the straight side to reach the high precision pre-bending of the beginning parts.                                                                                                                                                                                    2.high precision of the final products
Machine can roll big diameter round products and straightness curve products from thin panel to thick panel.
3.high efficiency
Upper roller’s fluctuate movement and leveling movement,improve the efficiency of the rolling,easy operation.

Mian Components
1.Double row self-aligning ball bearing :WaFangDian                                                                                                                    2.Hydraulic valve: YUKEN
3.Main&secondary motor:KAICHENG/HENGLI
4.Main retarder:Changzhou(worm gear reducer)
5.PLC: OMRON
6.Main electric components :siemens
7.Main cylinder:Jangsu & seal DZ Taiwan                                                                                                                                                       8.Seal:VALQUA                                                                                                                                                                                          9.Gear pump:Changyuan

Detailed structure about the W11S-50X3200 up-roller universal rolling machine
1.General Description:
This machine is three roller rolling machine, used for rolling the steel panel be round.
Upper can vertical and leveling moving.
Pre-bending be adjusted by upper roller. it realizing this action by adjust upper roller be Asymmetric position with downside roller
Rolling by motor and retarder driving two downside rollers
Because downside roller height is fixed, so it easy feeding and operating.
2. Machine Structure
Machine composed by upper roller unit, downside roller unit, downsideroller and leveling moving unit, support roller device, main driving device, turnover device, side rack and chassis
2.1 upper roller unit
Upper roller unit composed by main oil tank, bearing seat,upper roller, Two-out-aligning bearings,etc. two main oil tank give the pressure when rolling, working pressure of main oil tank: 19.5Mpa
Material of upper roller 42GrMoConditioning hardness HB260-300surface IF quenching HRC47-52
2.2 downside roller and leveling movement device
Downside roller composed by downside roller, bearing seat, enter gear, sliding bearing.
Main Transmission of downside roller supply poweropening transfer the torque to downside roller by main driving output gear,downside enter gear.
Material of downside roller 45#, Conditioning hardness HB260-300
surface IF quenching HRC47-52
Leveling moving device composed by leveling moving motor, worm gear box, worm,etc.
Leveling moving device get the power from leveling moving motor, Asymmetric rolling panels by worm box,worm, screw mandrel, screw mandrel nut drive upper roller leveling move.
2.3 Support Roller Unit
support roller unit composed by screw mandrel, screw mandrel nut unit, Oblique wedge, support roller etc. .
support roller can be fluctuate adjust according to rolling panel’s loading difference.
2.4.Main Driving Unit
main driving unit composed by main motor, triangle strap,column gear retarder electric,hydraulic handspike detent ,etc..
main driving unit can positive and negative turn to support power for rolling the panels.
2.5 Overturn Device
overturn device composed by ram, overturn oil tank,etc.
the overturn of overturn device is service for take out the products.
2.6 Fix, Overturn Side FrameChassis.
fix, overturn side framechassis is welding steel panelsafter welding, it be anneal to reduce stess, shot blast
3. Hydraulic System
Hydraulic system is composed by gear pump, valves, assistant pipelines,etc. Hydraulic valve adopted YUKEN Sandwich plate valvesimple pipeline, easy maintenance and testing.
System composed by three type of circuit: pressure adjusting circuit
synchronizing circuitspeed circuit.
pressure adjusting circuita adjust system working pressure by main bleed valve. System working pressure: 19.5Mpa.
synchronizing circuit  make the upper roller up and down be dividing synchronization by
flow divider valve and throttle valve
throttle valve adjust up and downdisplacement sensor inspect, upper roller synchronous position precision±0.20 mm
speed circuit control the side overturn frame overturn and reposition, adjusting the speed by throttle valve.
4. Electronic System
Electric control system is composed by electric cabinet, manual button box. power source 380V/50HZMain switch have short circuit protection and over loading protection. The running and reversion of the motor is controlled by AC Contactorthe control of circuitry by PLC controller and touch screen—Human-Machine Interface systemeasy and convenientupper roller can be set running automaticallyhigh autoimmunizationless relayaction reliablelong life. All the control buttons and lamps on the control cabinet to control the whole machine’s operation and working.
5. Machine Main characters
5.1 high precision head parts pre-bending
pre-bending the top parts by change the upper roller’s leveling movement distancecan set the straight side length freelygive the pressure directly by upper roller, control the shape of the straight side to reach the high precision pre-bending of the beginning parts.
5.2 high precision of the final products
Machine can roll big diameter round products and straightness curve products from thin panel to thick panel.
5.3 NC controlhigh efficiency
Upper roller’s fluctuate movement and leveling movement is controlled by NC system, improve the efficiency of the rolling, one person control, easy operation.
6. Components
6.1 supply things
1)、main machine
2)、electric control equipment
3)、hydraulic device
4)、lubricate device
5)、circuit fittings and main material of motorsthe connection lines from circuit control cabinet to execution units);
6)、the fittings and main material of hydraulic tube line.
7)、paint
8)、standard  spare parts
6.2 exclude supply things
1)、the ground foundation in buyer’s factoryinstall the hidden connection line and other accessories
2)、make the panels around the machine
3)、connection accessories and necessary things for electric initialize
 4
)、grounding accessories and other necessary parts
5)、hydraulic fluid and lubricating grease
