Home » Products » W11 MECHANICAL ROLLING » W11 10X2500 ROLLING MACHINE
Machine Structure Mechanical
Rolling Capability  Ós=245Mpa (Q235)/ T10×B2500×Φ550MM
Rolling Speed 4.5M/MIN
Upper Roller Diameter Φ240MM
Bottom Rollder Diameter Φ180MM
Centre-to-centre spacing Between Bottom Rollers 280MM
Main Motor 7.5KW
Weight 5500KGS
Dimension 4200X1000X1200MM

Main Character
Using Electronical centralized control,easy in operation
Using integrated chassis control system,convenient for equip and adjustment

Main Components
Main Reducer::Changzhou Guomao
Main Motor:Nantong Hengli
Gear:Wafangdian
Low Pressure Electronic:Simens

Standard Term
JB/T8796-1998 Precision of Rolling Machine
JB/T8797-1998 Basic Parameter of Middle and Small 3-Roller
JB/T9971-1999 Bending Machine,3-Roller Machine Noise Limit
GB/T522601-1996 General Technical Term and Condition of Merchanical Electronic

Machine Structure

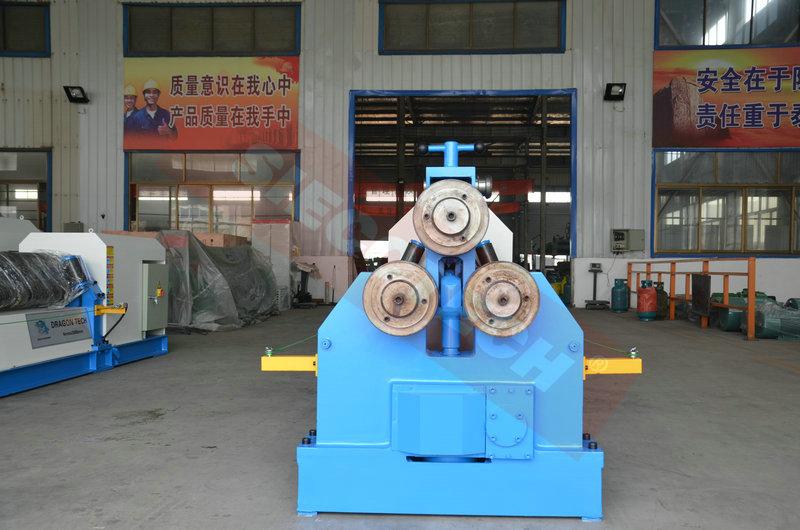

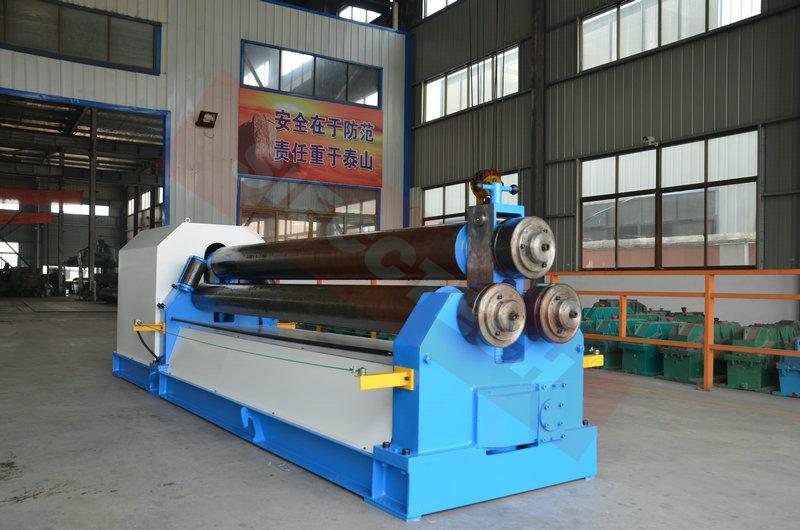

The machine is composed by three symmetrical roller, the upper roller is in the central vertical position above two bottom rollers for vertical up and down movement, the bottom rollers get the conversion motion by the screw rod and screw nut worm drive. The up roller is engaged with the bottom gear by the output gear of the reducer. The machine is in a full total structure, The working part, the main transmission part are equipped in one bottom rigid welded base,be convenient for installation and commissioning.
The working part
The working part is composed by up roller euipment, bottom rollerequipment, up roller press equipment, balance equipment, overturned part, machine body, and bottom base.

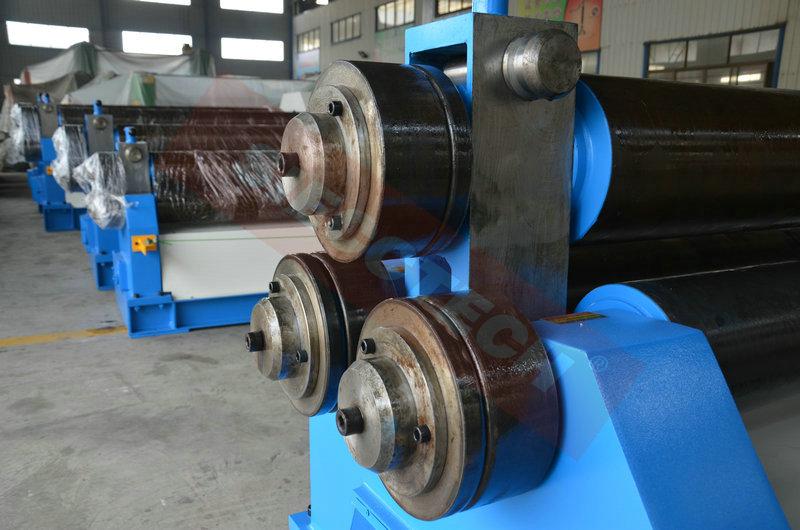

1.1 The up roller equipment
The up roller equipment is composed by up roller,Bearing Block,SF-2 composite bearing etc.
1.2 The bottom Roller Equipment
The bottom roller equipment is composed by bottom roller,bottom roller input gear, SF-2 composite bearing etc.
1.3 The up roller press equipment
The up roller press equipment is composed by main motor,reducer,the worm gear structure, screw lifting mechanism etc.
1.4 The balance equipment
The balance equipment is composed by abutment,screw,adjustment nut etc.

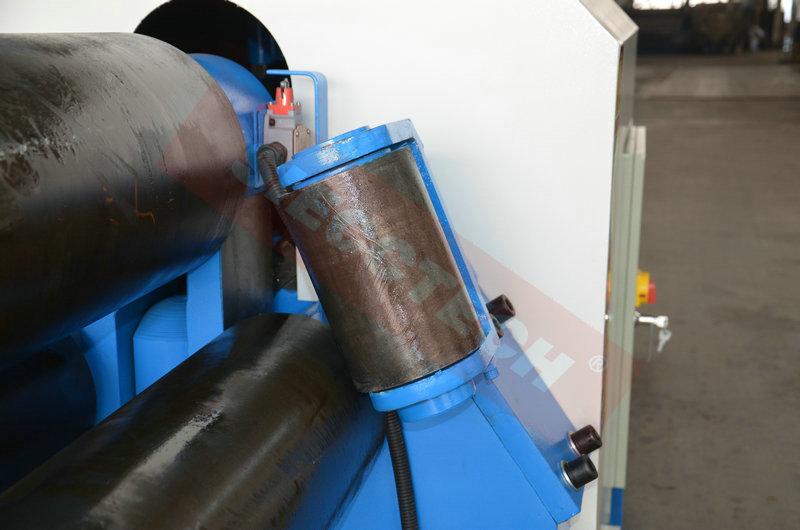

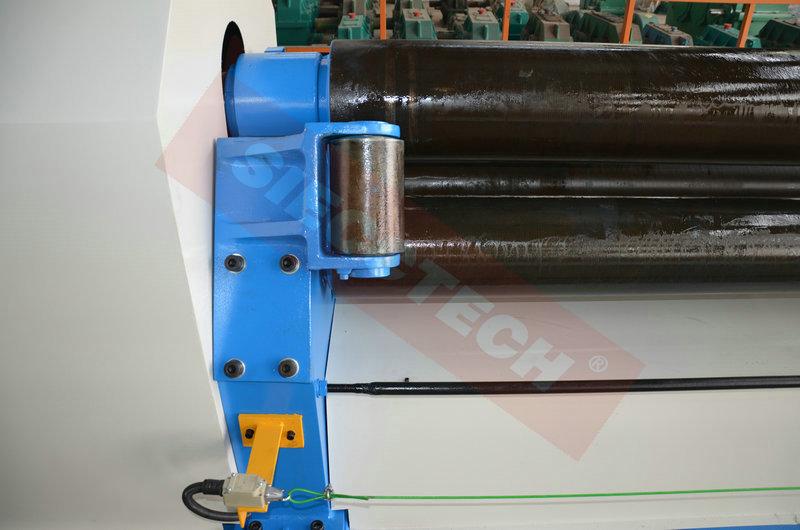

1.5 1-7 Overturned part
Overturned part is composed by inverted frame,hand shank etc.
1.6 Machine body and bottom base
The machine is welded body, the based is weld assembly through annealing stress.

The main transmission part
The main transmission part is composed by main motor, main reducer, a union joint, output gear etc.

Electrical control part.
The electrical control part is composed by control cabinet, stroke control device etc.
