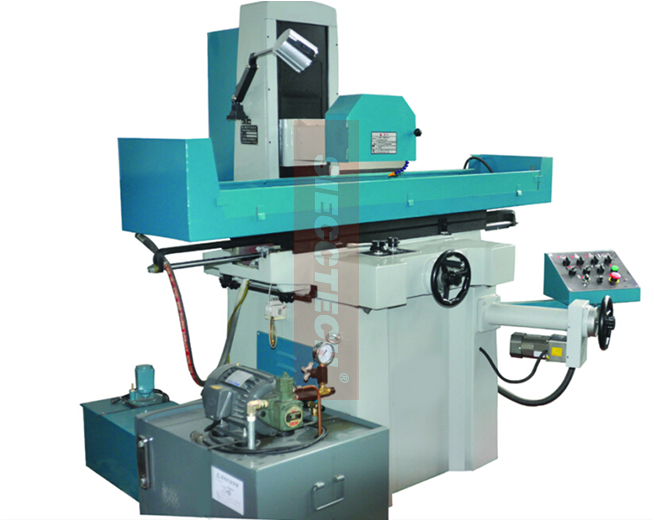

Characteristics of machine tools:

       The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.

       Using precision plastic guide surface and precision scraping, grinding imported

hydraulic transmission, drive by synchronous.

       The main mechanical valve is a special valve grinder, is divided into two

parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.

       Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.



" 机床特性

1、机床结构合理,刚性好,外型美观,操作方便。

2、采用精密贴塑导轨面外加精密铲花,进口液压传动,磨削传动采用同步。

3、系统主机械阀为磨床专用阀,分两部分,机械换向控制,节流调速控制。节流调速部分还有卸荷功能,可实现工作台的启停。

4、可磨削各种平面和复杂成型面,适用于不需机动进刀的磨削加工,可根据用户需要配有永磁吸盘或电磁吸盘。"



Model      型号 MY1230
Bench              工作台 Max.workpiece  to  be Ground (L×W×H)                        工作台台面尺寸 (长×宽) mm 700×320
Maximum travel of table (L × W)                        工作台最大行程 (长×宽) mm 760×320
 Table maximum cutting area (L × W)                     工作台最大切削面积 (长×宽) mm 760×320
Number  of  T -Slot  工作台T型槽 (槽数×槽宽) mm 1×14
The grinding head        磨头 Distance  From  Table Surface  To  Spindle  Center                                 砂轮轴中心线至工作台面距离 m 540
Wheel  Size(dia×width×bore)                                    砂轮(WA46K5V尺寸 (外径×宽×内径) mm ø335×30×ø127
Spindle speeds     砂轮转速(50HZ r/m 1440
The amount of feed                        进给量 Table longitudinal (left and right) speed (stepless)                工作台纵向(左右)速度(无级) /min 5  ̶  25
Table horizontal (before and after) the amount of feed                      工作台横向(前后)进给量 Continuous (variable speed)连续(无级调速) mm/min 150
Intermittent (stepless)      断续(无级调速) m/ 0   ̶   5
The handwheel rotates手轮每转 mm 4
Hand wheel each grid 手轮每格 mm 0.02
Vertical (up and down) feed wheel feed                       垂直(上下)进给手轮进给量 The handwheel rotates手轮每转 mm 2
Hand wheel each grid 手轮每格 mm 0.01
Motor power 电机功率 Spindle motor       主轴电机 kw 4
Cooling motor       冷却电机 kw 40
Reversing feeder      换向进给器 Hydraulic motor     油压马达   kw 1.5
Working pressure    工作压力   mpa 3
Fuel tank capacity  油箱容量 L 80
The maximum flow    最大流量   L/min 18
Working precision      工作精度 The machined surface of the base of parallelism                              加工表面对基面的平行度 mm 300/0.004
Surface  Roughness    表面粗糙度 μm Ra0.32
Weight of machine机床重量 Net     净重 T 2.1
Cross   毛重 T 2.35
Machine  Size (L×W×H)      外形尺寸(长×宽×高) mm 1990×1700×1990
