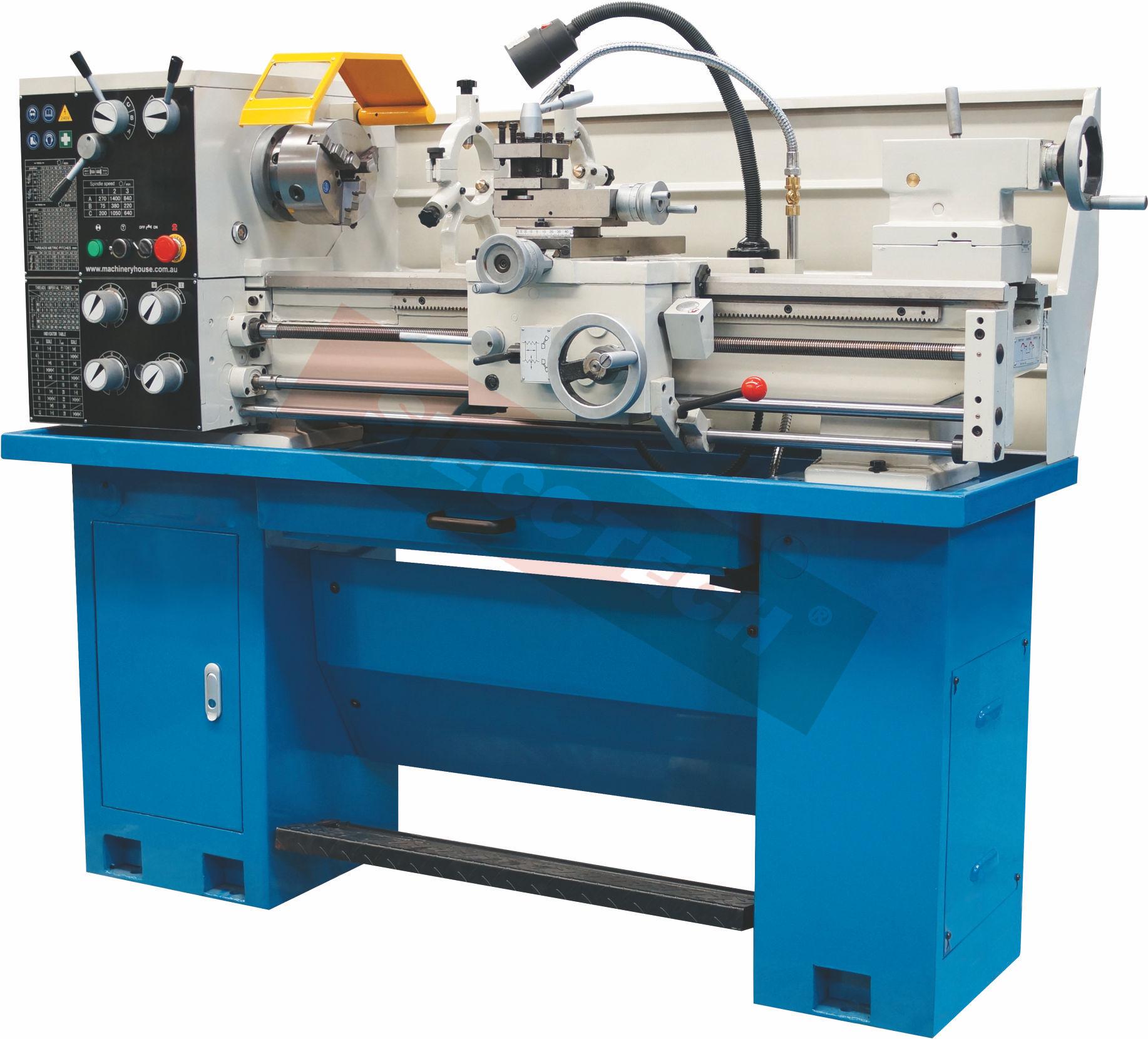

| Model | CQ6230B | ||
| Capacity | Swing over bed | 300mm | 12" |
| Swing over gap | 430mm | 17" | |
| Swing over cross slide | 180mm | 7" | |
| Distance between centers | 750mm/910mm/1000mm | 30"/36"/40" | |
| Spindle | speed range | 65-1400rpm(or 65-1810rpm) | |
| spindle bore | 38mm | 1-1/2" | |
| taper of bore | No.5Morse | ||
| Travel | Longitudinal feeds range | 36kinds0.079-1.291mm/rev | 0.003"-0.0508" |
| Cross feeds range | 36kinds0.017-0.276mm/rev | 0.0007"-0.0108" | |
| Feed | Metric threads range | 0.4-7mm | |
| Inch threads range | 4-60T.P.I | ||
| Tailstock | Travel of tailstock sleeve | 100mm | 4" |
| Morse taper of tailstock sleeve | No.3Morse | ||
| Others | Power of main motor | 1.1kw | |
| Weight | 550/590/670kgs | ||
| size | 1480/1680/1940*750*1400mm | ||
