Home » Products » Rotator » Conventional welding rotator

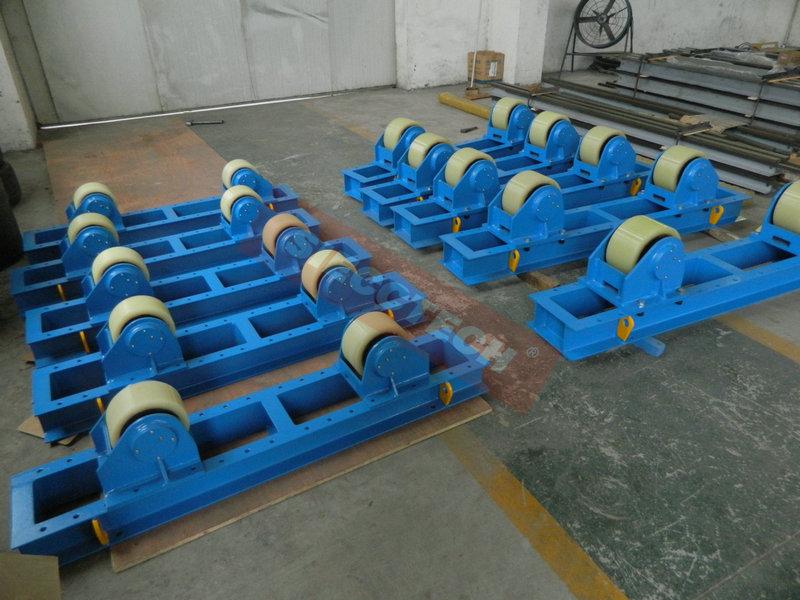

The HGZ type welding rotators have advantages of the same kinds of products in domestic and international.We design and make them according to the requirments of the pressure ve-ssel factory.These products are applied in the handling and automatic welding of the metal circle containers,They have many advantages such as advanced technology,dependabe quality,easy operation.

  Welding turn roller are exported toBrazil,India,Jordan,South Africa,UK,Poland,Spain, and so on.

All rotators have passed the CE,they are used for oil industry,press vessel,wind tower production line,Pipe line production and any other round workpiece.

  The rotators have two kinds,adjustable and conventional,It can used in all kind of the diameter,and frequency conversion setting,low sound,work placidity.



Type

HGZ5

HGZ10

HGZ20

HGZ30

HGZ40

HGZ50

HGZ60

HGZ80

HGZ100

Load

5

10

20

30

40

50

60

80

100

Wheel

Metal Wheel

Diameter

(mm)

240

290

340

340

390

390

440

490

490

Width

(mm)

20

25

30

30

40

40

50

60

80

Rubber Wheel

Diameter

(mm)

250

300

350

350

400

400

450

500

500

Width

(mm)

100

120

120

120

120

120

120

120

120

Tube body

diameter

(MIN)mm

250

320

500

530

600

750

750

850

1000

(MAX)mm

2300

2800

3500

3700

4200

4500

4800

5000

5000

Wheel velocity(m/h)

6-60

6-60

6-60

6-60

6-60

6-60

6-60

6-60

6-60

Power of motor

0.75

1.1

1.5

2.2

3

4

4

4

5.5

Way of setting

Electric magnetism of frequency conversion setting
