Home » Products » Lathe Machine » CHA SERIES LATHE

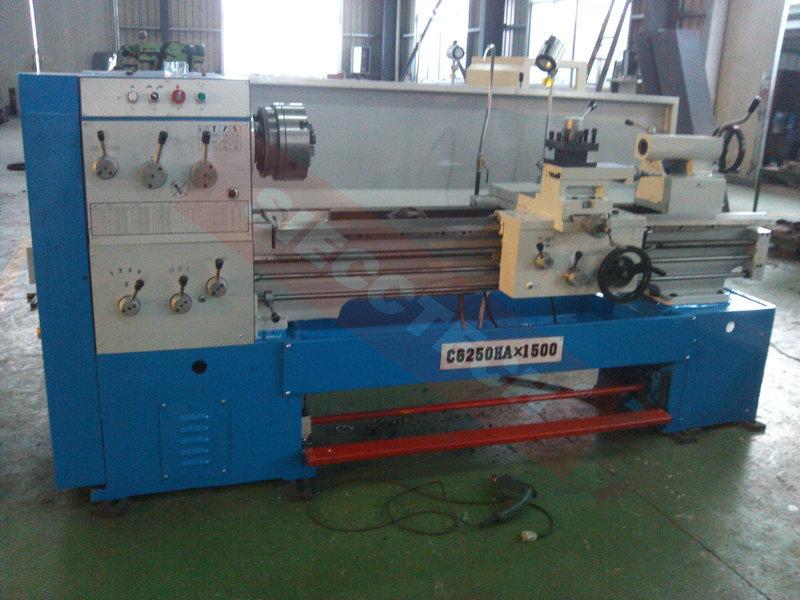

Model C6250HA
CAPACITY Max.swing over bed 500mm
Max.swing over cross slide 330mm
Max.swing over gap 660mm
Effective length of gap 200mm
Center Distance 1500mm
Bed Width 360mm
HEADSTOCK Spindle hole 82mm
Spindle nose ISO-C8
Spindle taper MT8
Spindle speed(Number) (9steps)40-1300rpm
FEEDS Longitudinal feeds range 0.0832-4.66mm/r
Cross feeds range 0.048-2.69mm/r
Metric threads range 19kinds 0.25-14mm
Inch threads range 49kinds 2-40inch
Moudle threads range 11kinds 0.5-3.5mπ
CARRIAGE Max.travel of top slide 95mm
Max.travel of cross slide 250mm
Max.size of toolshank 20*20mm2
TAILSTOCK Dia.of tailstock sleeve 65mm
Taper of tailstock sleeve MT5
Max.travel of tailstock 140mm
MOTOR Main drive motor 5.5KW
Coolant pump motor 125W
PACKING
L*W*H
Center Distance(1500mm) 295*115*175cm
N.W/G.W Center Distance(1500mm) 1750/2050kg



"PRODUCT FEATURES


*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.

*GEARS PRECISELY GROUND TO REDUCE NOISE.

*SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.

*RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
