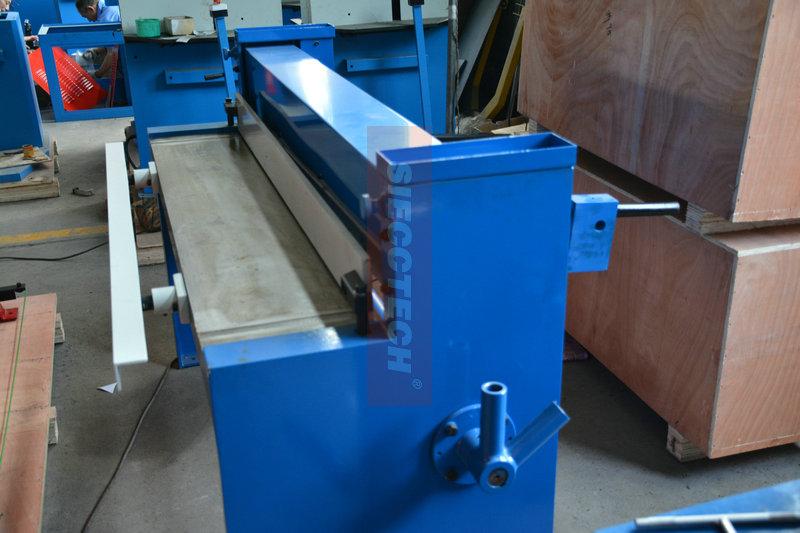

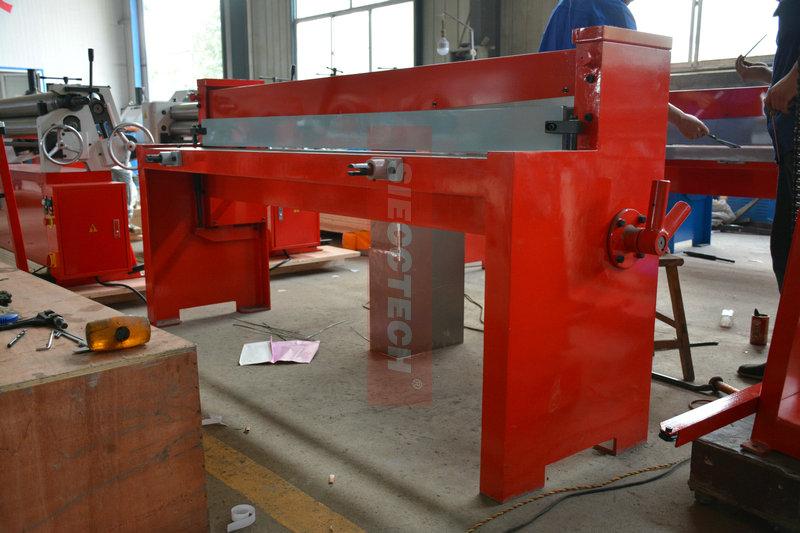

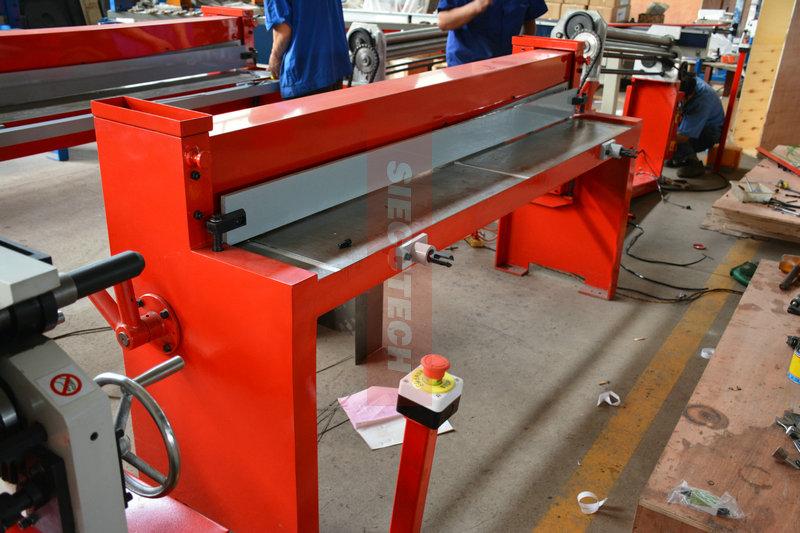

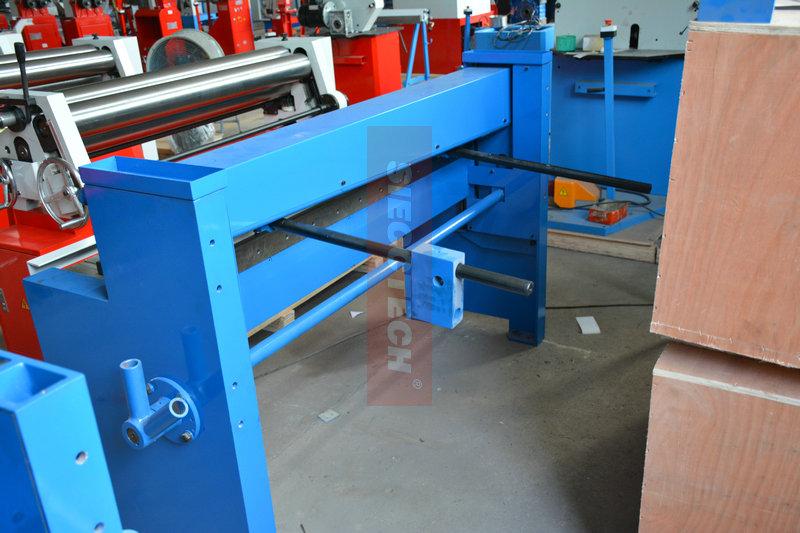

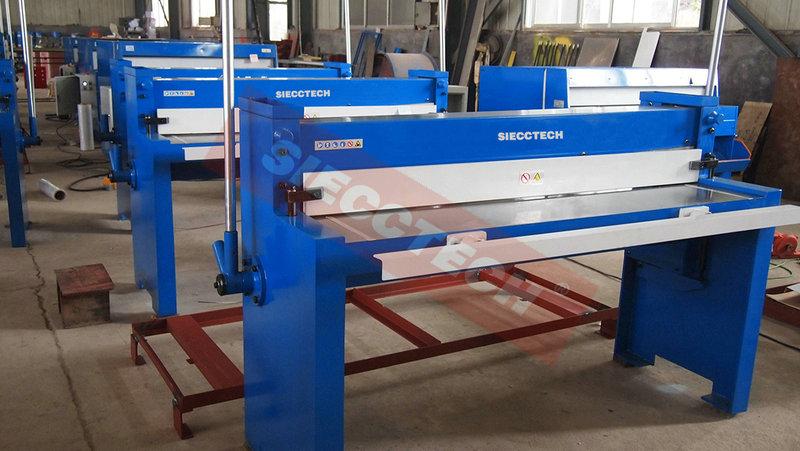

Home » Products » Q01 Type Hand Shearing Machine » Q01 Hand Guillotine Shear Machine



Model Q01-1.0*1000 Q01-1.5*1320 Q01-2*1000 Q01-2*1000A Q01-1.5*1320A
Width(mm) 1000 1320 1000 1000 1320
Max.shearing thickness(mm) 1.0 1.5 2.0 2.0 1.5
Back gauge range (mm) 0-700 0-700 0-700 0-800 0-800
Packing size (cm) 140*76*115 168*76*115 140*76*115 140*76*115 168*76*115
N.W./G.W.(kg) 365/410 491/545 405/450 355/400 430/500
Model Q01-1.5*1500 Q01-1.25*2000 Q01-1.5*1050 Q01-0.8*2500
Width(mm) 1500 2000 1050 2500
Max.shearing thickness(mm) 1.5 1.25 1.5 0.8
Back gauge range (mm) 0-300 0-300 0-300 0-300
Packing size (cm) 208*76*120 258*76*120 158*76*120 308*76*120
N.W./G.W.(kg) 445/515 511/600 378/438 595/745
