Home » Products » Grinding Machine » MY40100 Grinding Machine

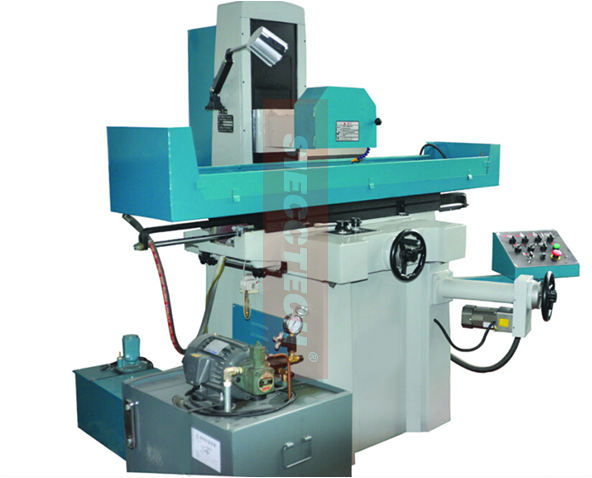

"Characteristics of machine tools:

       The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.

       Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.

       The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.

       Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.



机床特性:

1、机床结构合理,刚性好,外型美观,操作方便。

2、采用精密贴塑导轨面外加精密铲花,进口液压传动,磨削传动采用同步。

3、系统主机械阀为磨床专用阀,分两部分,机械换向控制,节流调速控制。节流调速部分还有卸荷功能,可实现工作台的启停。

4、可磨削各种平面和复杂成型面,适用于不需机动进刀的磨削加工,可根据用户需要配有永磁吸盘或电磁吸盘。"

Technical Parameters  技术规格 UNIT     单位 MY40100
Max table surfacing size (L×W×H)                               工作台台面尺寸 (长×宽) mm 1000×400×405
Maximum table vertical movement                                         工作台最大纵向移动量   mm 1020
Front and rear wheel feed   工作台横向移动量 mm 440
Distance  From  Table Surface  To  Spindle  Center       砂轮轴中心线至工作台面距离 mm 580
Maximum work load   工作台最大承受量 kg 400
Max.workpiece  to  be Ground (L×W×H)                                   工作台台面尺寸 (长×宽×高) mm 1000×400
Number  of  T -Slot  工作台T型槽  mm×n 18×3
Table speed                    工作台速度   0-26
Before and after the automatic feed (CVT)                       前后自动进给量(无级变速) mm 0.5-20
The amount of front and rear wheel feed                                   前后手轮进刀量 mm 0.02/Graduation4/revolution                  0.02/ 4/
Wheel  Size(dia×width×bore)                                              砂轮 尺寸 (外径×宽×内径) mm Φ350×32×127
Spindle speed     主轴转速 r/min 1450
Each ring of lifting weight tuning mechanism        微调机构每圈升降量 mm 0.04
Fine tuning mechanism of each grid feed rate                  微调机构每格进给量 mm 0.001
Spindle motor         主轴电机   5.5(Y132S-4 B5)
Machine  Size (L×W×H)                                    外形尺寸(长×宽×高)   mm 2660×1790×1917
Packing  Size (L×W×H) 包装箱尺寸(长×宽×高) mm 2800×1990×2180
CrossNet   weight   毛重、净重 kg 4200/3800
