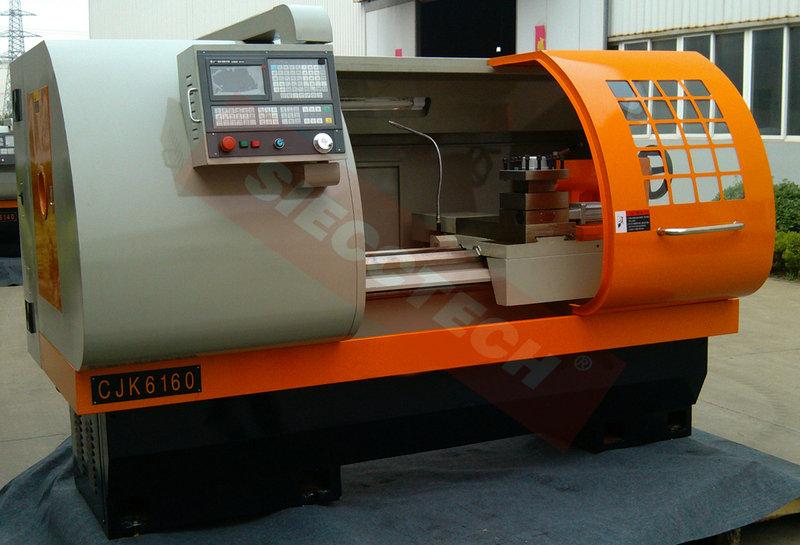

Home » Products » CKA SERIES LATHE MACHINE » CKA SERIES LATHE MACHINE



Model CK6160A CK6166A CK6180A
CAPACITY Max.swing over bed 600mm 660mm 800mm
Max.swing over cross slide 200mm
Length of the machine 10001500mm
Center Distance 9001400mm
Bed Width 400mm
HEADSTOCK Spindle hole 96mm
Spindle nose ISO-C11
Spindle taper Metric 115mm
Steps of spindle speed (Manual) High-Low(Variable)  /  Gears(Variable)
Range of spindle speed 100-500rpm-400-2000rpm  /  18-2000rpm
CARRIAGE Fastest speed of carriage X/Z:8/10m/min
Repeat position precision Z:0.013mm X:0.012mm
Number of stations 4/6 stations or gang tools
TAILSTOCK Dia.of tailstock sleeve 75mm
Taper of tailstock sleeve MT5/MT6
Max.travel of tailstock 150mm
MOTOR Main drive motor 7.5/11KW
Coolant pump motor 125W
SYSTEM System brand SIEMENS 808DFANUC 0i-MateGSK 980TDb
PACKING
L*W*H
Length(1000mm) 210*145*175cm
Length(1500mm) 240*145*175cm
