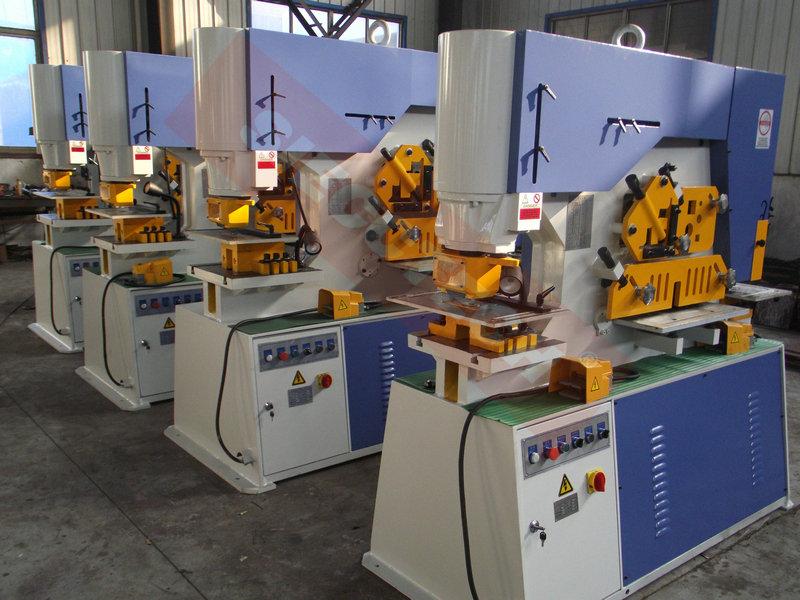

Home » Products » Ironworkers » Q35Y-4O IRONWORKER
Pressure 2000KNS
Max. Thickness of Plate   40MM
One stroke of plate cutting 35X400MM
25X700MM
Strength of Plate 450N/MM2
Shearing Angle 8
Stroke of Slide 80MM
Times of Stroke 10/MIN
Throat Depth 600MM
Max. Punching Hole Capability  Φ35X40
Power of Main Motor 15KW
Round Bar 70MM
Squre Bar 60X60MM
Equilateral Angel Steel Shear 90° Shearing 200X200X18
45° Shearing 100X100X10
"T" Type of Steel 90° Shearing 160X160X14
45° Shearing 80X80X10
"工" Type Of Steel 300x126x11
Channel Type Steel 300x89x12
Total Length 2900MM
Width 1300MM
Height 2650MM
Weight 8000KGS
