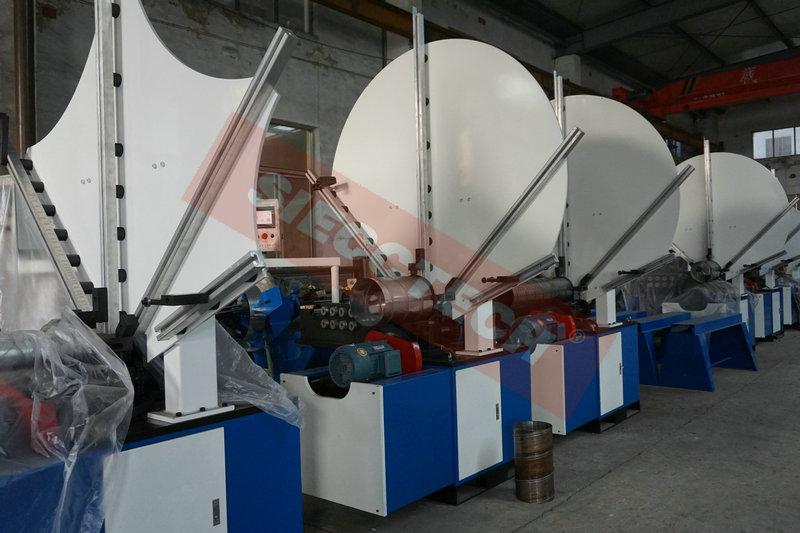

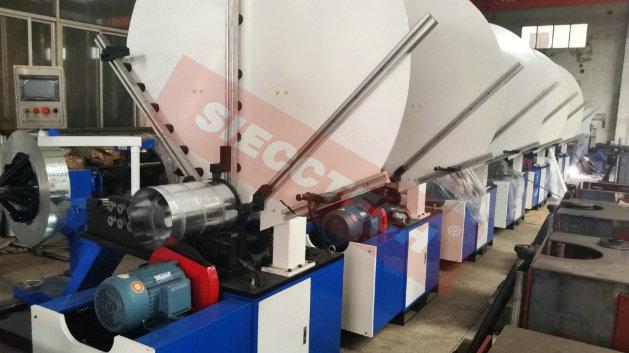

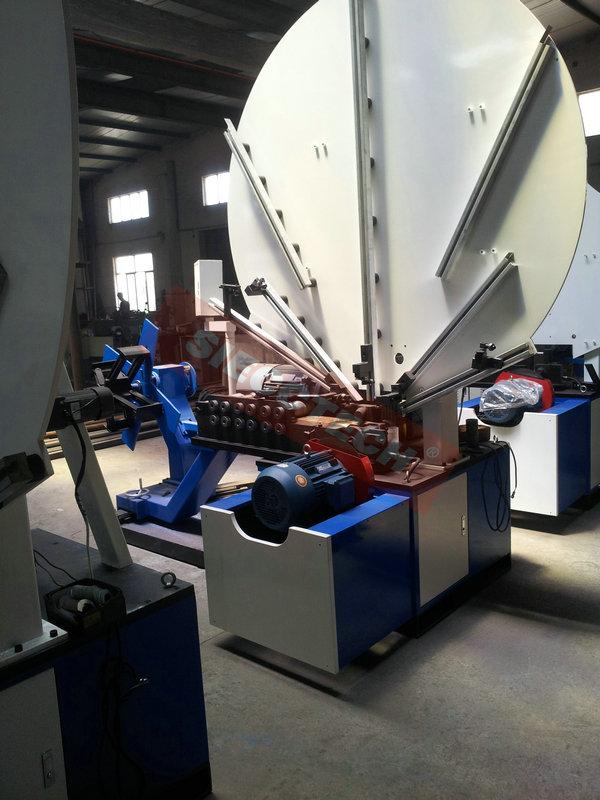

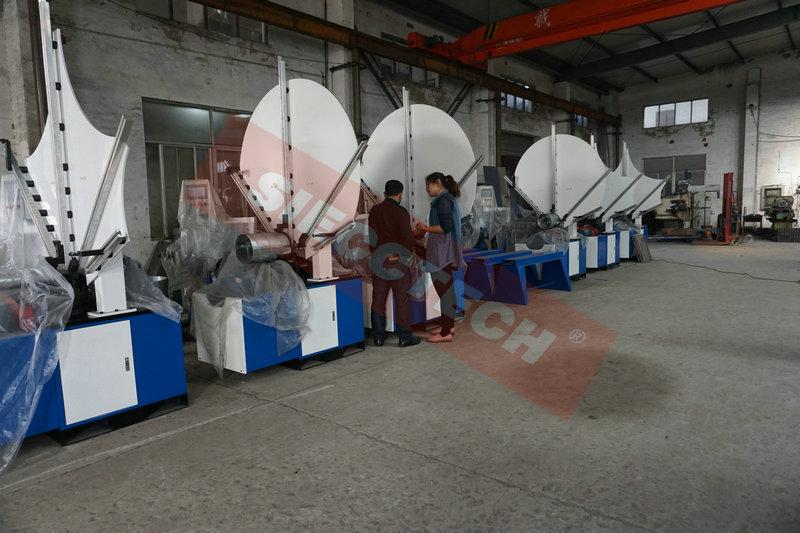

Home » Products » SPRIAL DUCT FORMING MACHINE » JX-1500C SPRIAL TUBE FORMING MACHINE

           Main technical data---Spiral tube forming machine

Diameter Range

80-1500mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-1.5mm

Width of Strip

137mm

Strip Speed

1-40m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2350mm x 2200mm x 2580mm

Weight

1800kg

Main Motor Power

11kW

Cutting Motor Power

5.5kW

Air Pressure

0.5-0.7Mpa
