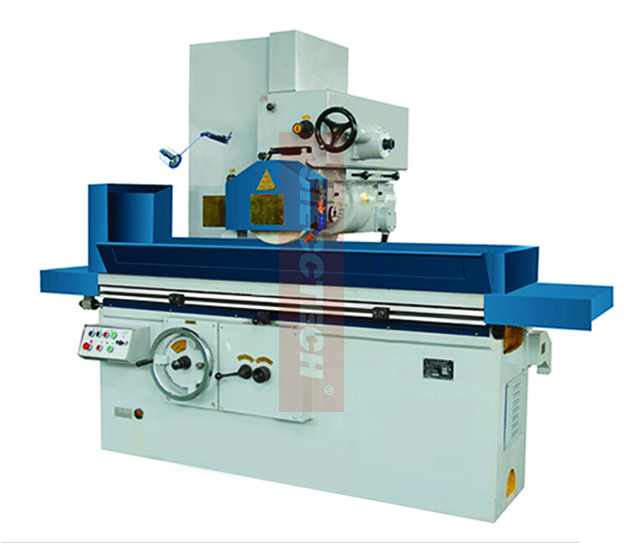

Home » Products » Grinding Machine » M7160 Grinding Machine
Characteristics of machine tools:

The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.

Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.

The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control.
Throttle control part and unloading function, can realize the station start and stop.

Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a
permanent magnet sucker or electromagnetic sucker.

机床特性:
1、机床结构合理,刚性好,外型美观,操作方便。

2、采用精密贴塑导轨面外加精密铲花,进口液压传动,磨削传动采用同步。

3、系统主机械阀为磨床专用阀,分两部分,机械换向控制,节流调速控制。节流调速部分还有卸荷功能,可实现工作台的启停。

4、可磨削各种平面和复杂成型面,适用于不需机动进刀的磨削加工,可根据用户需要配有永磁吸盘或电磁吸盘。
Technical Parameters  技术规格 UNIT     单位 M7160
Max table surfacing size (L×W×H)     工作台台面尺寸 (长×宽) mm 1250×630
Maximum table vertical movement          工作台最大纵向移动量   mm 1350
Distance  From  Table Surface  To  Spindle  Center                                                                   砂轮轴中心线至工作台面距离 mm 800
The maximum lateral displacement of the grinding head                                  磨头最大横向移动量 mm 700
Head vertical feed handwheel graduation value                  磨头垂直进给手轮刻度值 Hand wheel each grid            手轮每格 mm 0.01
The handwheel rotates       手轮每转 mm 1
Fast lifting motor       快速升降电机 Power                        功率 Kw 0.37
speeds                      转速 r/min 1450
Wheel  Size(dia×width×bore)                                              砂轮(WA46K5V) 尺寸 (外径×宽×内径) mm Φ400×50×203
Spindle speeds                         砂轮转速(50HZ r/min 1440
The total power of electric motor      电机总功率 Kw 14
Spindle motor         主轴电机 Kw 7.5
The oil pump motor    油泵电机 Kw 5.5
The machined surface of the base of parallelism                                           加工表面对基面的平行度 mm 300/0.004
Spindle motor               电机总功率 μm Ra:0.63
Cross、Net   weight            毛重、净重 Kg 5600/6300
Packing  Size (L×W×H)     包装箱尺寸(长×宽×高) mm 3800×2700×2800
