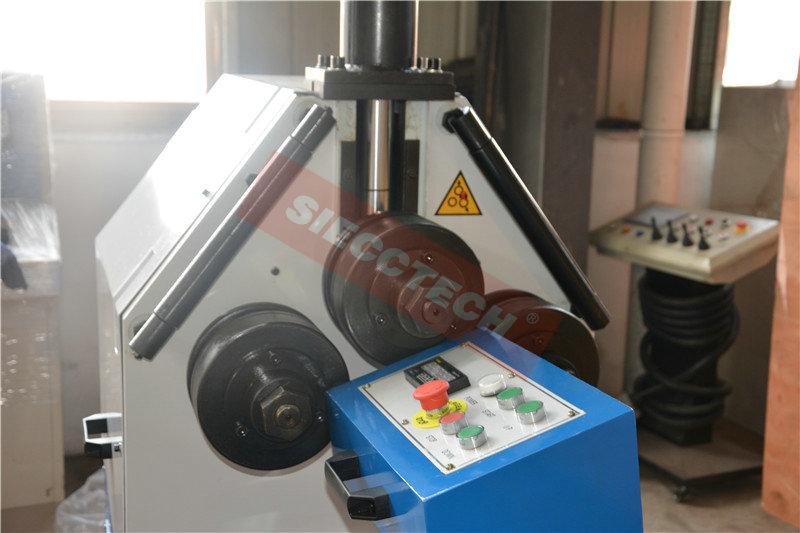

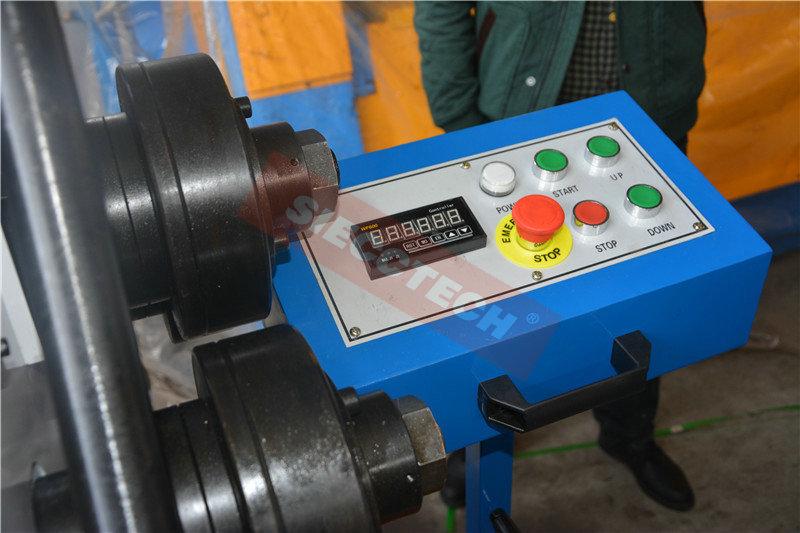

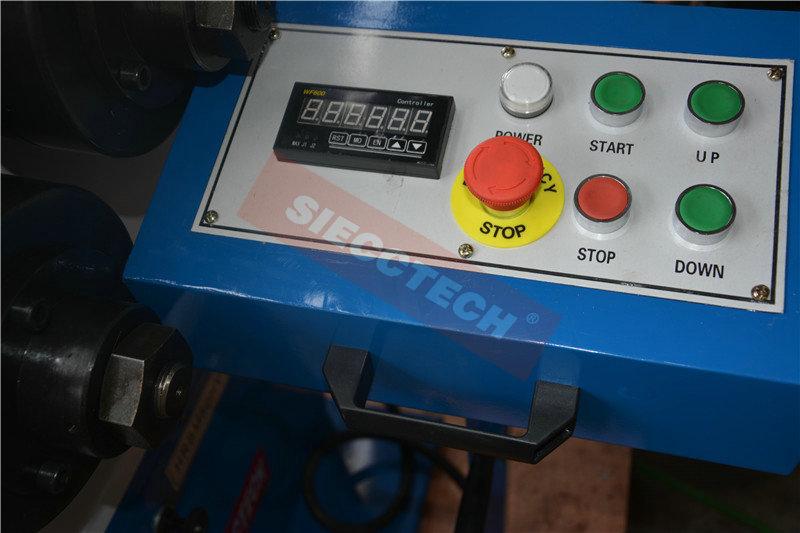

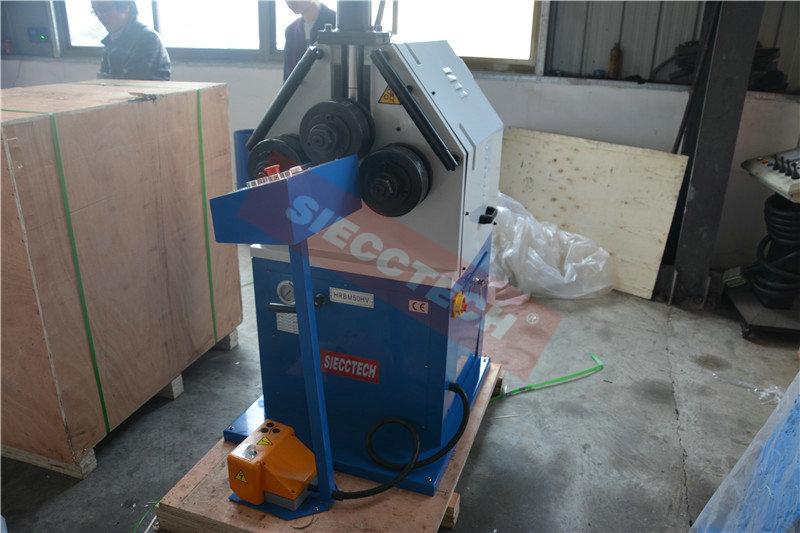

Home » Products » Profile bending roll machine » HRBM50HV Profile Bending Machine

Model RBM40HV RBM50 RBM50HV HRBM40HV HRBM50HV HRMB65
Dia.of roller(mm) Φ40 Φ50 Φ40 Φ50 Φ65
Power 1.5kw/2HP 2.2kw/3HP 1.5kw/2HP 2.2kw/3HP 2.25kw
Spindle speed 9.3 r/mm 13 r/mm 9.3 r/mm 13 r/mm 9.3 r/mm
Packing size(cm) 140*95*34 100*82*155 134*93*185 150*95*134 125*115*180
N.W./G.W.(kg) 425/495 450/582 490/586 515/647 720/920
Capacity 　 Size(mm) Min Dia.(mm) Size(mm) Min Dia.(mm) Size(mm) Min Dia.(mm) Size(mm) Min Dia.(mm) Size(mm) Min Dia.(mm)
Pipe Bending
30*2 35*2 40*2
45*2 50*2 55*2
60*2 65*2 70*2		 700 30*2 35*2 40*2
45*2 50*2 55*2
60*2 65*2 70*2		 600 30*2 35*2 40*2
45*2 50*2 55*2
60*2 65*2 70*2		 700 30*2 35*2 40*2
45*2 50*2 55*2
60*2 65*2 70*2		 600 3-1/2"*2"
2-1/8"*2"
Φ100*2mm
Φ60*2mm		 900
500
1000
500
Round-Bar Bending
Φ30
Φ10		 650
1100		 Φ35
Φ30		 600
650		 Φ30
Φ10		 650
1100		 Φ35
Φ30		 600
650		 Φ50
Φ20		 600
400
Square-Pipe Bending
50*50*2.5 30*30*2
50*50*2.5 40*20*2		 700 800
800 1000		 60*60*3 40*40*3
70*50*3 50*40*3		 600 500
1200 800		 50*50*2.5 30*30*2
50*50*2.5 40*20*2		 700 800
800 1000		 60*60*3 40*40*3
70*50*3 50*40*3		 600 500
1200 800		 70*70*3 30*30*3
80*40*3 50*30*2		 900 500
800 500
Flat-Steel Vertical Bending
50*10
20*6		 600
800		 60*10
40*10		 500
650		 50*10
20*6		 50*10
20*6		 60*10
40*10		 500
650		 80*25
40*10		 600
500
Flat-Steel horizontal Bending
60*20
30*6		 800
1250		 100*15
60*10		 920
1150		 60*20
30*6		 800
1250		 100*15
60*10		 920
1150		 120*25
50*10		 600
400
Angle Steel inward Bending
50*5
30*4		 500
500		 60*5
50*5		 700
700		 50*5
30*4		 500
500		 60*5
50*5		 700
700		 70*6
40*5		 600
500
Angle Steel Outward Bending
50*5
30*4		 500
500		 60*5
50*5		 500
500		 50*5
30*4		 500
500		 60*5
50*5		 500
500		 70*6
40*5		 500
400
U-Bar Outward Bending
60*40*6
30*15*4		 600
900		 85*45*6
65*40*5		 600
550		 60*40*6
30*15*4		 600
900		 85*45*6
65*40*5		 600
550		 100*50*6
50*40*5		 600
500
U- Bar Inward Bending
60*40*6
30*15*4		 600
900		 85*45*6
65*40*5		 650
550		 60*40*6
30*15*4		 600
900		 85*45*6
65*40*5		 650
550		 100*50*6
50*40*5		 600
500
T-steel Outward Bending 50*6
30*3		 600
500		 60*7
50*5		 750
500		 50*6
30*3		 600
500		 60*7
50*5		 750
500		 80*40*7
40*40*5		 500
400
T-steel Inward Bending 50*6
30*3		 600
500		 60*7
50*5		 750
700		 50*6
30*3		 600
500		 60*7
50*5		 750
700		 80*40*7
40*40*5		 400
360
