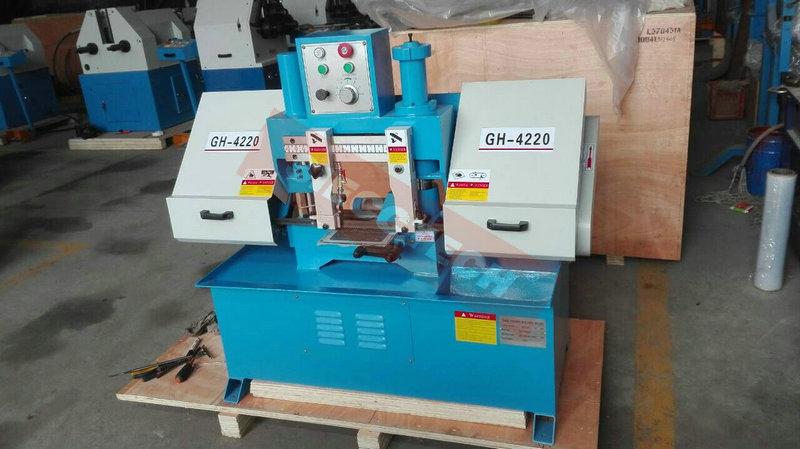

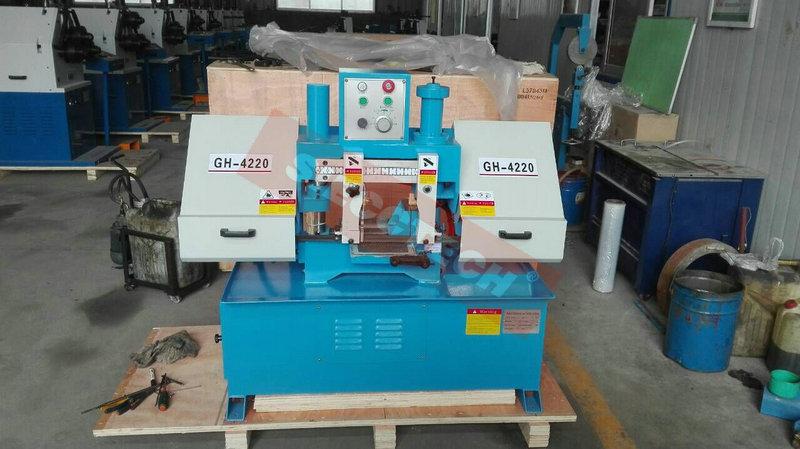

Double Column Horizontal Band Sawing Machine (GH4220)
Features of horizontal band sawing machine:

1.saw frame travels across solid dual-column guides
2.rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
3.ideally positioned control panel within comfortable reach on top of the saw frame
4.at the end of each sawing cycle, the saw blade frame will automatically return to the home position
5.throttle valve allows infinitely variable saw frame feed
6.two cutting speeds for a wide spectrum of materials and workpiece diameters
7.manually adjustable workpiece clamping and linear stop
Specification of double column band sawing machine:

MODEL NO GH4220
Cutting capacity 200-200×200
Blade speed 2650×27×0.9
Blade size 27,45,69
Motor main MANUAL
Motor hydraulic 1.5
Coolant pump 0.55
Workpiece claamping 0.04
Size outward 1300×800×1100
