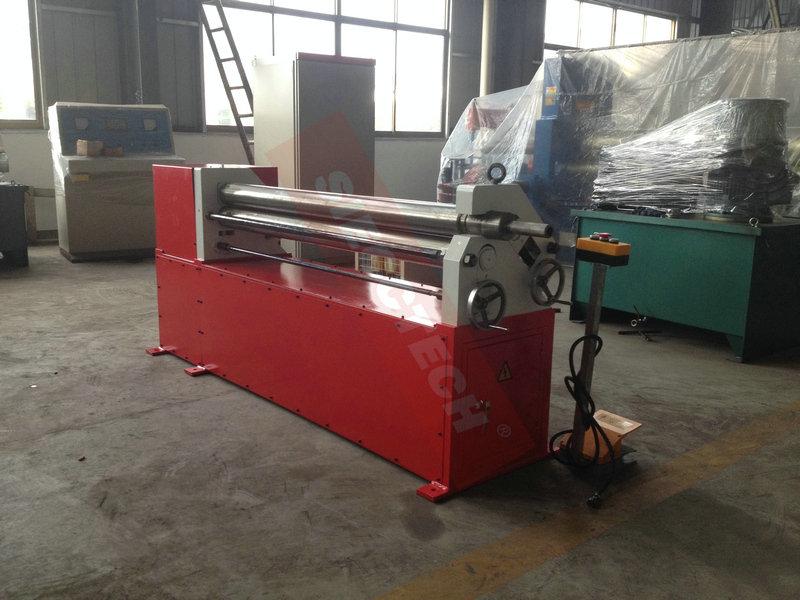

Home » Products » W11F 3 ROLLER ASYMMETRICAL » W11F 4.5X2500 ROLLING MACHINE
Machine Structure Mechanical Three Roller Asymmetrical with prebending
Rolling Capability 3200MM
Working Roller Length 3250MM
Max. Rolling Thickenss 4MM
Min.Rolling Thickness 1.5MM
Plate Limit 245MPA
Upper Roller Diameter Φ170MM
Bottom Rollder Diameter Φ170MM
Side Roller Diameter Φ170MM
Rolling Speed 4.5M/MIN
Main Motor 5.5KW
Up-down Motor 2.2KW
Weight 4000KGS
Machine Structure
The machine has three roller, but the three roller is not symmetrical distributed, the upper roller is not in the middle above the two bottom rollers.
The upper roller is main drive roller making rotary movement. The bottom roller makes vertical movements to tight the plate, the output gear of the bottom roller is connected with the up roller’s input gear. Another one side roller make declining vertical movement.

This machine has a reliable divided mechanism structure to guarantee the synchronization of the three rollers when rolling at the same time. The bottom and the side roller’s vertical movement is controlled by lifting screw to achieve rolling different diameter.
The machine has pre-bending and rolling two function, this is best suitable machine for all 6MM thickness less plate rolling, can reach the same function compared with W12 four roller rolling machine. It can be used for high-precision of filmy plate and has high working efficiency.
