Home » Products » CQ6230D LATHE MACHINE » CQ6230D LATHE MACHINE

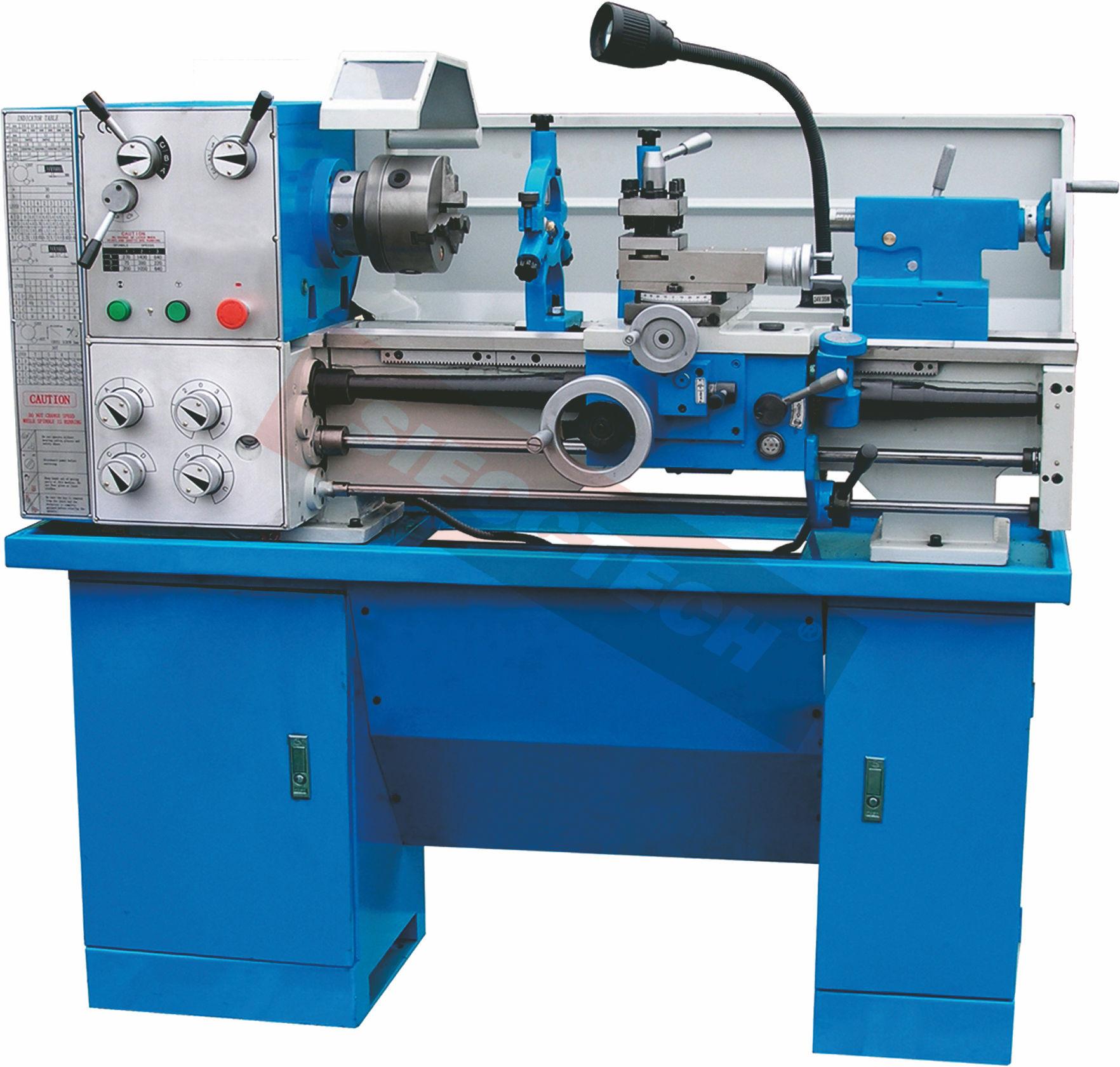

Model CQ6230D(Variable-speed)
Capacity Swing over bed 300mm 12" 300mm 12"
Swing over cross slide 178mm 7" 178mm 7"
Swing in gap diameter 430mm 17" 430mm 17"
Length of workpiece 714/914mm 28"/36" 914mm 36"
Length of turning 560/760mm 22"/30" 760mm 30"
Spindle Spindle bore 38mm 1-1/2" 38mm 1-1/2"
Taper of spindle bore MT NO. 5 MT NO. 5
Range of spindle speed(9 steps) 75~1400r/min 60~400r/min or 380~2200r/min
Quill taper MT NO. 3 MT NO. 3
Feed Range of metric threads to be cut(26 kinds) 0.4-7mm 0.4-7mm
Range of inch threads to be cut(34 kinds) 4-56T.P.I 4-56T.P.I
Longitudinal feed per revolution of spindle(32 kinds) 3mm 8T.P.I 3mm 8T.P. I
Pitches of three feed leadscrews 0.052~1.392 0.002~0.0548 0.052~1.392 0.002~0.0548
Cross feed per revolution of spindle(32kinds) 0.014~0.38 0.0007~0.0187 0.014~0.38 0.0007~0.0187
Travel Max. longitudinal travel of saddle 600/800mm 23-1/2"/31-1/2" 800mm 31-1/2"
Max. travel of cross slide 160mm 5-5/16" 160mm 5-5/16"
Max. travel of top slide 85mm 3-1/4" 85mm 3-1/4"
Tailstock Quill travel 95mm 3-3/4" 95mm 3-3/4"
Others Main motor power 1.5HP(1.1kW) 1.5HP(1.1kW)
Motor frequency 60Hz or 50Hz 60Hz or 50Hz
Motor voltage 380/415V/115/230Vor110/200V 380/415V/115/230V or 110/200V
Overall dimensions(L W H) 160X73X127cm 160X73X127cm
Net weight 480kg 480kg
Packing size(L W H) 148/168X75X142cm 168X75X142cm
