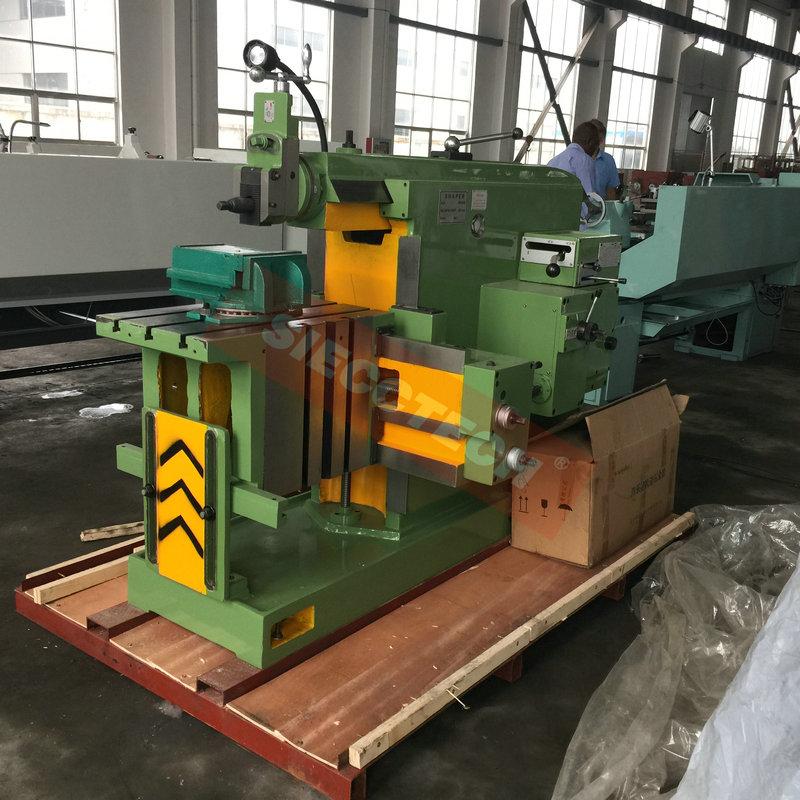

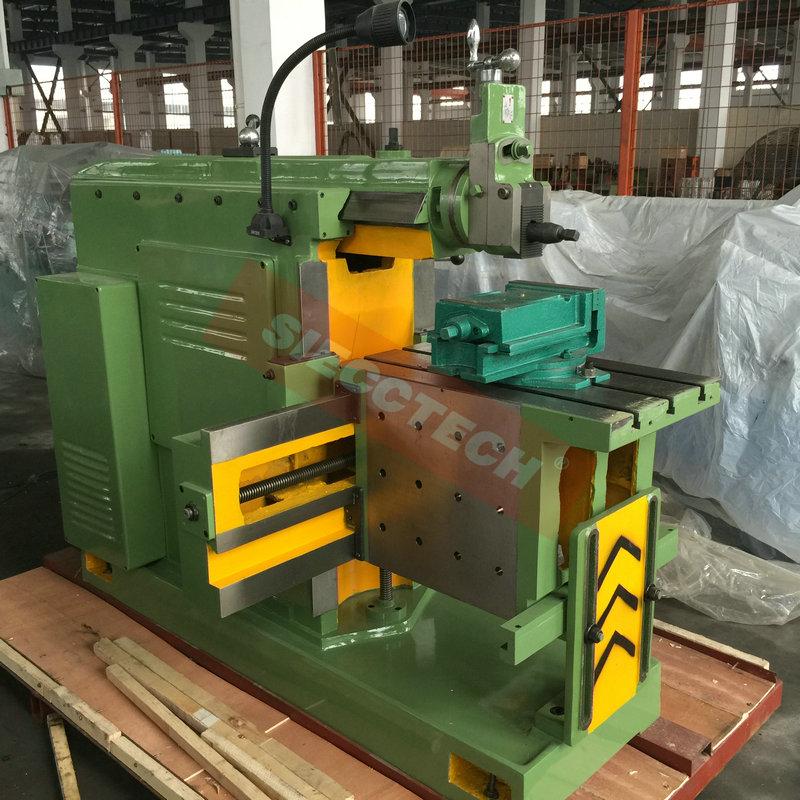

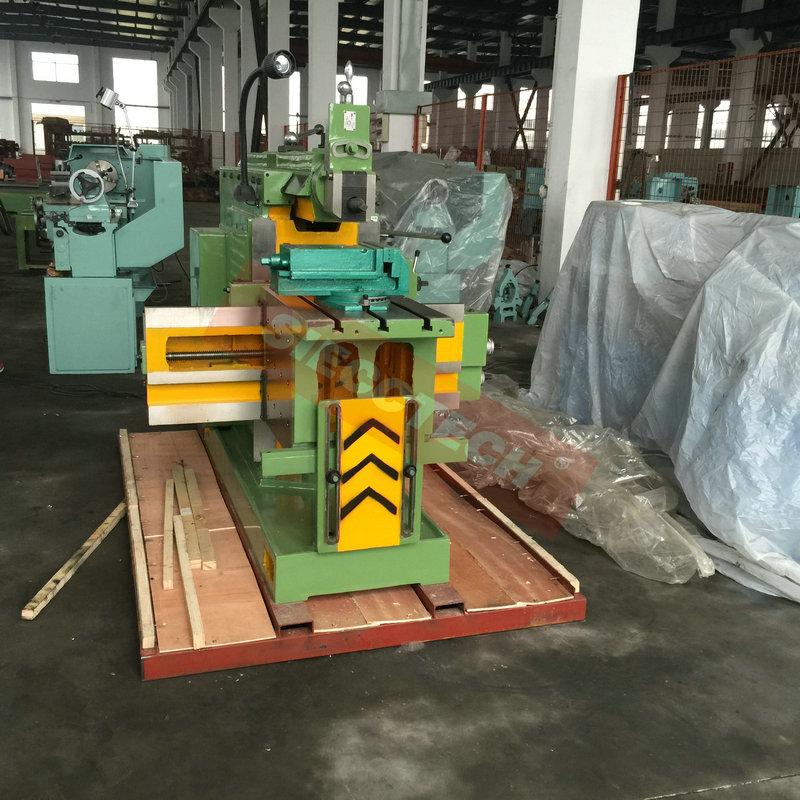

Home » Products » Shaping Machine » Shaping Machine
Model  BC6063/BC6066
 Maximum cutting length(mm)  630/660
 Maximum distance from ram bottom to table surface(mm)  385
 Maximum table horizontal travel(mm)  630
 Maximum table vertical travel(mm)  360
 Dimensions of table top surface(L×W)(mm)  630×400/660×400
 Travel of tool head(mm)  120
 Number of ram strokes per minute  14,20,28,40,56,80
 Swivel of tool head(°)  ±60°
 Maximum size of tool shank(W×T)(mm)  20×30
 Range of table power feed  horizontel  0.2~2.5
 vertical  0.08~1.00
 Width of central T-slot of table(mm)  18
 Power of mortr(kw)  3
 Overall dimensions(L×W×H)(mm)  2342×1225×1480
 2357×1225×1480
 N.W/G.W(kg)  1750/1870 1800/1920
