Home » Products » Notch machine » FR NOTCH 6X200

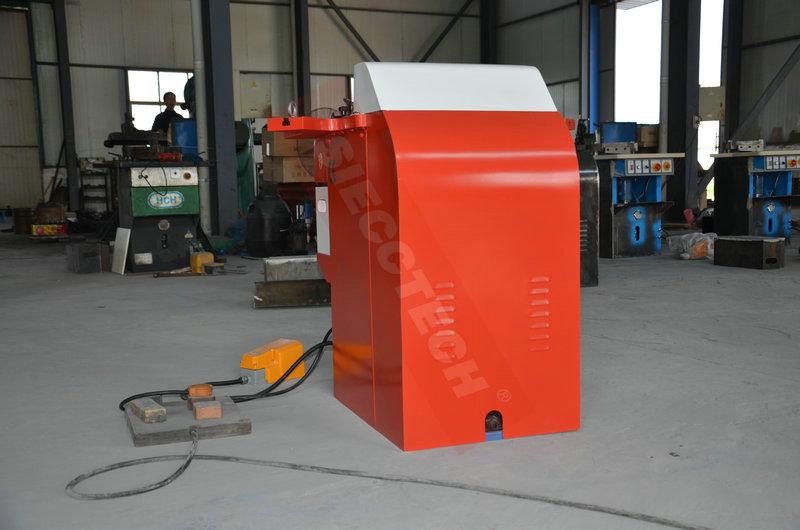

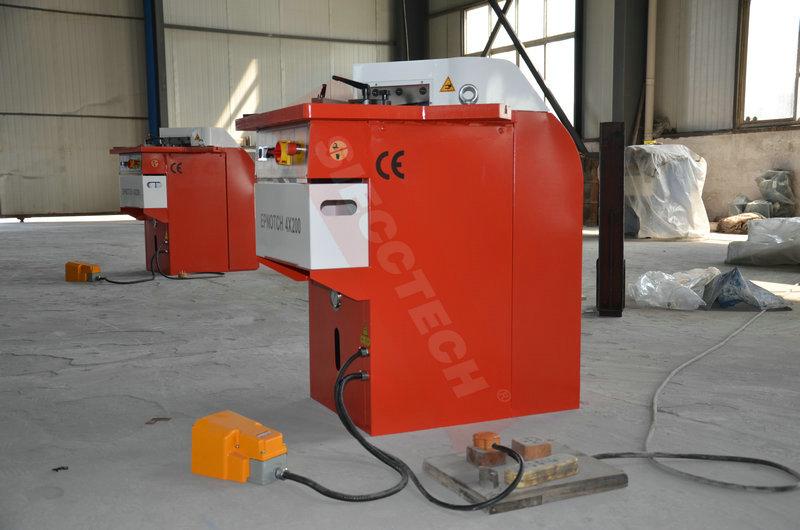

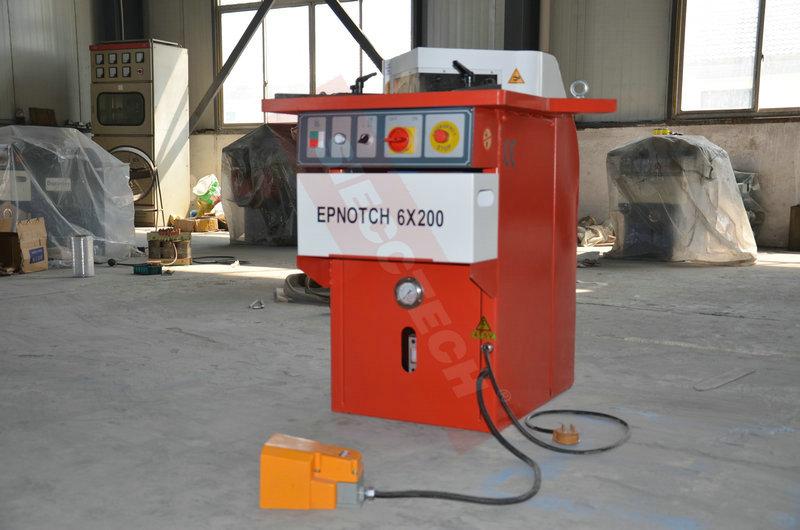

This machine is a kind of thin-plate notching machinery. The user can notch angles of more than 90°, through a two step process. and have heavy duty cutting blade. and easy to read front gauges. The equipment is suitable for use in the field of motor-car, shipbuilding, air conditioning, duct, cooker and stainless products.

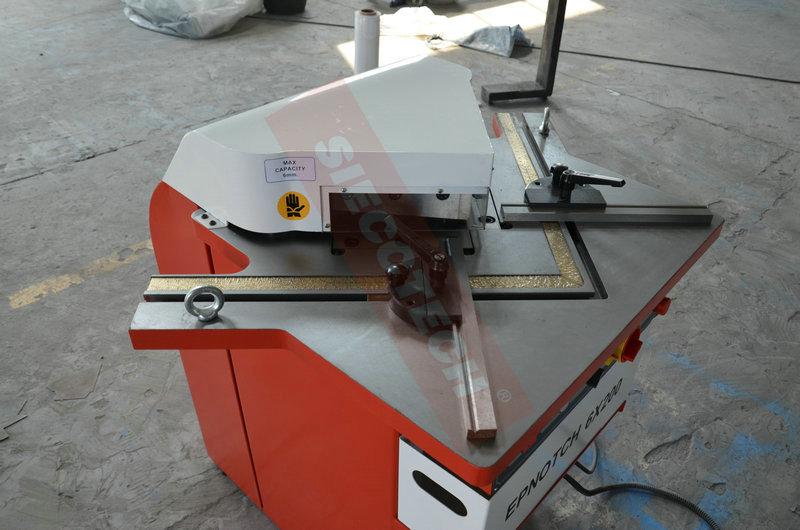

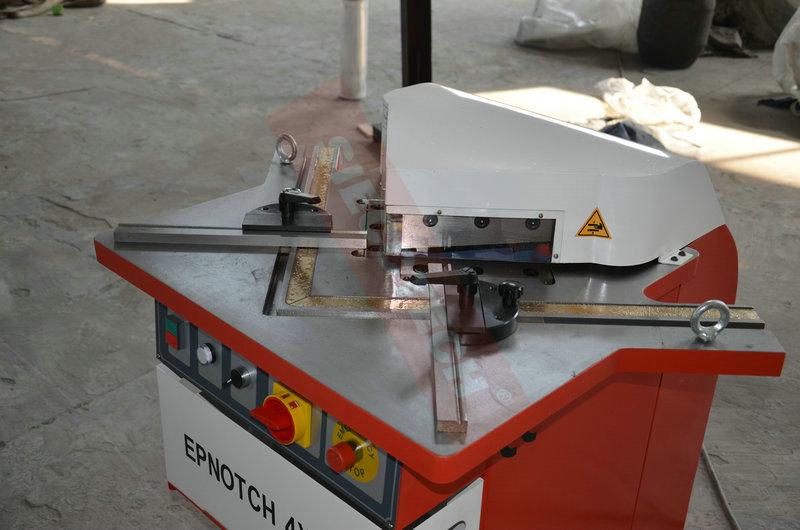

The machine frame is structured with steel welded plate. The worktable and spin table are structured with casting steel. This machine is reliable control with easy adjustment and maintenance.


Type Min cutting thickness(mm) Max cutting thickness(mm) Min adjustable Angle Max adjustable Angle Weight(kg) Dimension(mm)
carbon steel Stainless steel carbon steel Stainless steel
F-QF28Y-4*200 0.5 0.5 4 2 90 90 600 850*700*1100
F-QF28Y-6*200 0.5 0.5 6 3 90 90 980 850*700*1100
F-QX28X-4*200 0.5 0.5 4 2 45 135 1300 1000*800*1200
F-QF28X-6*200 0.5 0.5 6 3 45 135 1500 1000*800*1200
