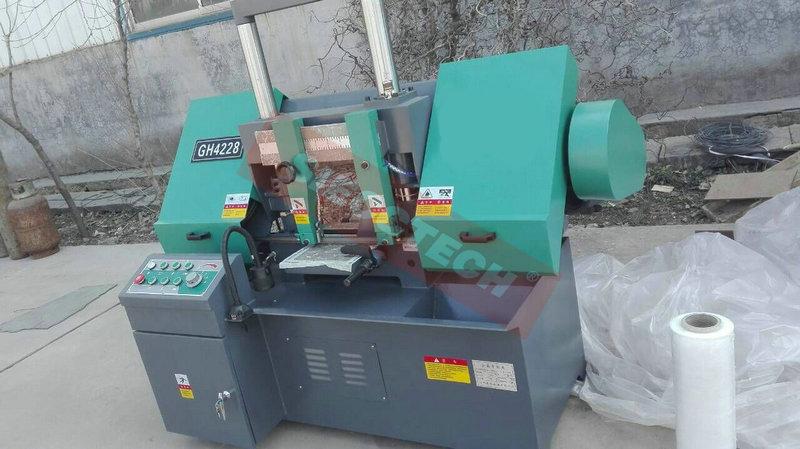

Main features for GH4228,GH4235 models:
1. Double column structure vertical lifting high stability
2. High efficiency, high precision save material saving energy
3. The hydraulic pressure controls the speed of saw stepless speed regulation
4. The camp of workpieces and hydraulic, control easily
5. Can made 3 hydraulic tension saw blades per request
Main specification
Specifications of our Double Column Band Saw Machine:
| MODEL NO | GH4228 | GH4235 |
| Cutting capacity(mm) | 280-280×280 | 350-350×350 |
| Blade size(mm) | 3505×34×1.1 | 4115×34×1.1 |
| Blade speed(m/min) | 27,45,69 | 27,45,69 |
| Clamping type | Hydraulic | Hydraulic |
| Motor main(kw) | 2.2 | 3 |
| Motor hydraulic(kw) | 0.55 | 0.55 |
| Coolant pump(kw) | 0.04 | 0.04 |
| Overall dimension(mm) | 1860×1000×1400 |
2000×1000×1500 |
