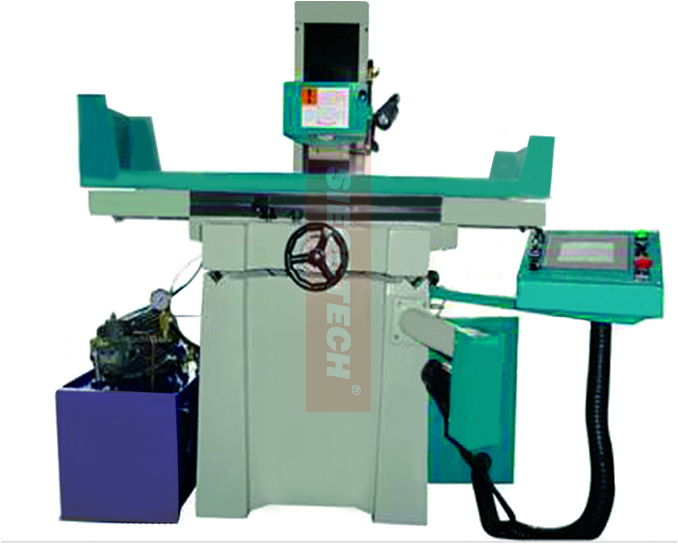

Home » Products » Grinding Machine » MSI1224 CNC Surface Grinding Machine

" The emergence of high precision molding CNC grinding machine, changed people’s concept and understanding of the CNC surface grinding machine. CNC ""shaping"" grinder broke our previous of several processing production process routines at work. All hosts die casting components such as the base, working table, the upper frame, after two times of annealing to remove internal stress. The first annealing was performed in order to eliminate internally generated in the process of casting stress before processing.   The second heat treatment is after machining and grinding, because it can eliminate the stress in the clamp, milling, drilling, boring and produced in operation. Precision operation of integrated design makes the base can be as solid as rocks experience Months and years pass by. Slide the length and working table length, it can eliminate the workbench distorted.

          Slide rail is combined with a cast iron finishing surface and a specialdesign of anti friction interface. Together the two pieces of precision smooth surface can maximum reduce the friction coefficient and the 'stick slip motion', also benefit to improve the lubrication and wear resistance.

          Through expert hand shovel flower, Longitudinal workbench and skateboard ramp surface have perfect contact effect to ensure high precision requirements . MSI series model is always after the first finishing with artificial then do final finishing processing.

机床特性

      高精度数控成型磨床的面世,改变了人们对数控平面磨床的概念和认识。数控“成型”磨床打破了以往我们一个工件必须经过几道工序的加工制作。所有主机压铸元件如底座、工作台、上机架等都经过二次退火来去除内应力。第一次退火在加工前进行以便于消除在铸造过程中产生的内部应力。第二次热处理在加工后和磨削前进行,因为这样可以消除在钳、铣、钻、镗操作中产生的应力。一体式设计使得底座坚如磐石可以经历长年累月的精密操作。滑道的长度和工作台等长,这样可以消除工作台的扭曲变形。

      滑轨都由一块铸铁精削表面和一块特殊设计的抗摩擦介面联接而成。这两块精密的平滑表面组合在一起可以最大限度的降低摩擦系数和‘粘滑运动’,有利于润滑油的润滑和提高耐磨性能。

      纵向工作台和滑板表面滑道都有专家经过手工铲花,完美的接触效果能够保证极高的精度要求。MSI系列型号在经首次精整后再用人工做最终的精加工处理。"

Technical Parameters     技术规格 Unit   单位 MSI1224
Max.workpiece to be Ground ( L×W×H)                                                                  磨削工件最大尺寸(长×宽×高) mm 600×300×350
Max. Grinding Length    工作台纵向移动量 mm 640
Max. Grinding Width     工作台横向移动量 mm 320
Distance From Table Surface To Spindle Center                                                           工作台面至主轴中心最大距离 mm 490
Slide way      工作台滑道   Double V rail               V
Maximum work load   工作台最大承受量 Kg 200
Table Size (L×W)       工作台台面尺寸 (长×宽) mm 600×300
Number of T -Slot        工作台T型槽 mm×n 14×1
Speed OF Working Table    工作台速度 m/min 18
Cross Feed On Handwheel     前后手轮进刀量 mm 0.02/Graduation2.5/revolution                                          0.02/ 2.5/
Vertical Feed On Handwheel       上下手轮进刀量 mm 0.01/Graduation1.25/revolution                                            0.01/1.25/
Wheel Size (dia.×width×bore )                                                                              砂轮尺寸 (外径×宽度×内径 ) mm 200×20×31.75
Spindle Speeds  主轴转速 50Hz rpm 2850

Spindle Motor                   电机总功率 Kw 3.04
Hydraulic station motor       磨头电机功率 Kw 2.0
The machined surface of the base of parallelism                                          加工表面对基面的平行度 mm 0.003
Surface  Roughness     表面粗糙度 μm Ra0.63
Working Pressure           工作压力 Mpa 3
Max.Capacity                  最大流量 L/min 18
Minimum Of Numerical     油箱容量 L 80
Coolant Pump       冷却泵 Kw 0.5
Machine  Size (L×W×H)          外形尺寸(长×宽×高)                                      mm 2100×1540×1760
Packing  Size (L×W×H)                  包装箱尺寸(长×宽×高  )                                 mm 2150×1600×1800
CrossNet    毛重、净重 T 1.95 1.85
