Home » Products » CK SERIES LATHE MACHINE » CK SEREIS LATHE MACHINE

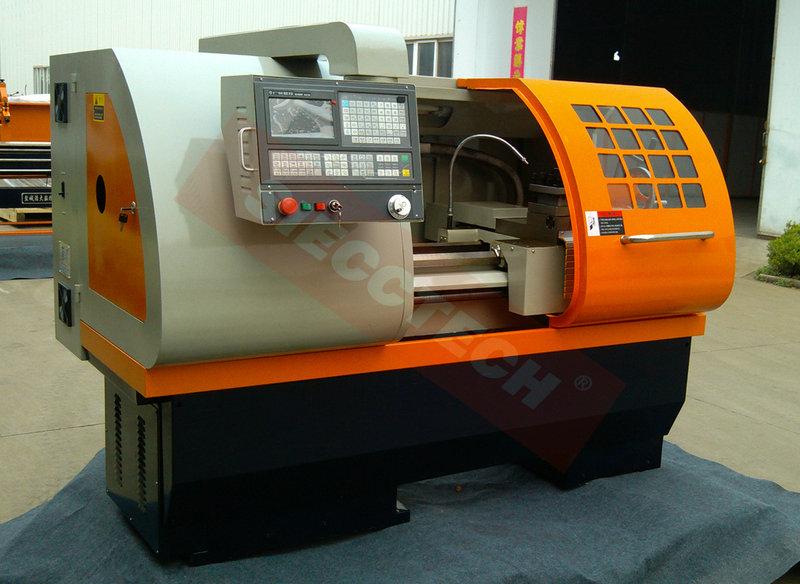

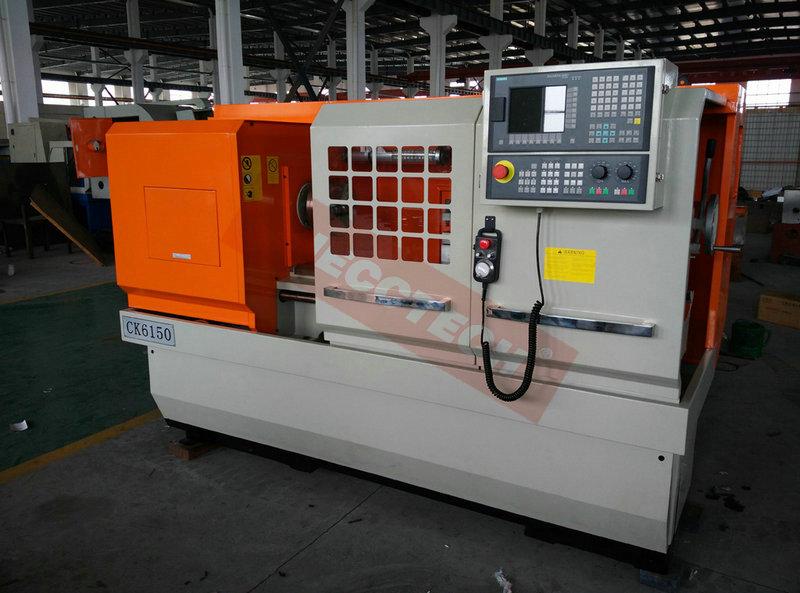

Model CK6136 CK6140 CK6150
CAPACITY Max.swing over bed 360mm 400mm 500mm
Max.swing over cross slide 200mm
Length of the machine 45075010001500mm
Center Distance 3506509001400mm
Bed Width 360mm
HEADSTOCK Spindle hole 52/65/80mm
Spindle nose ISO-C6/D6/D8
Spindle taper MT6/Metric 70mm/Metric 85mm
Steps of spindle speed (Manual) Variable H/L Variable Gears Variable
Range of spindle speed 400-2800rpm 100-500rpm
400-2000rpm
18-2000rpm
CARRIAGE Fastest speed of carriage X/Z:8/10m/min
Repeat position precision Z:0.013mm X:0.012mm
Number of stations 4/6 stations or gang tools
Indexing time 1sec
TAILSTOCK Dia.of tailstock sleeve 65mm
Taper of tailstock sleeve MT4/MT5
Max.travel of tailstock 120mm
MOTOR Main drive motor 4/5.5/7.5KW
Coolant pump motor 125W
SYSTEM System brand SIEMENS 808DFANUC 0i-MateGSK 980TDb
PACKING
L*W*H
Length(450mm) 210*145*175cm
Length(750mm) 240*145*175cm
Length(1000mm) 275*145*175cm
Length(1500mm) 325*145*175cm
