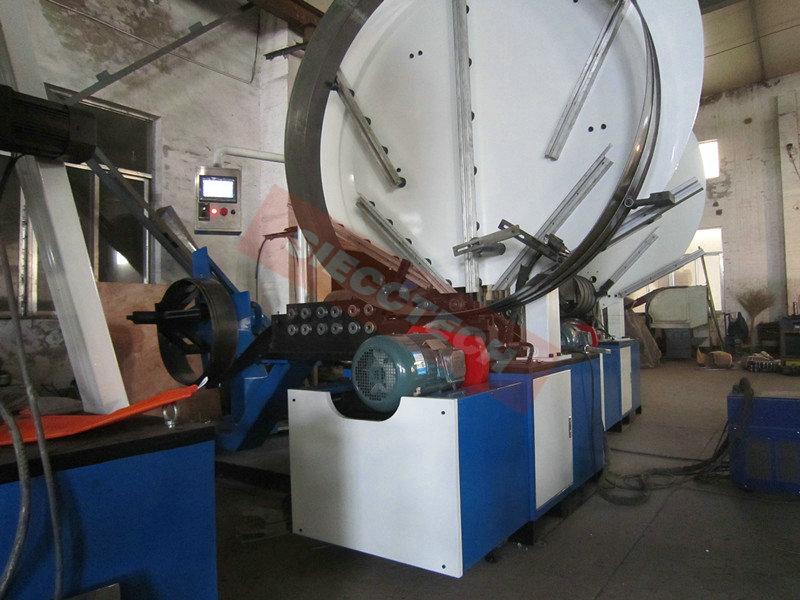

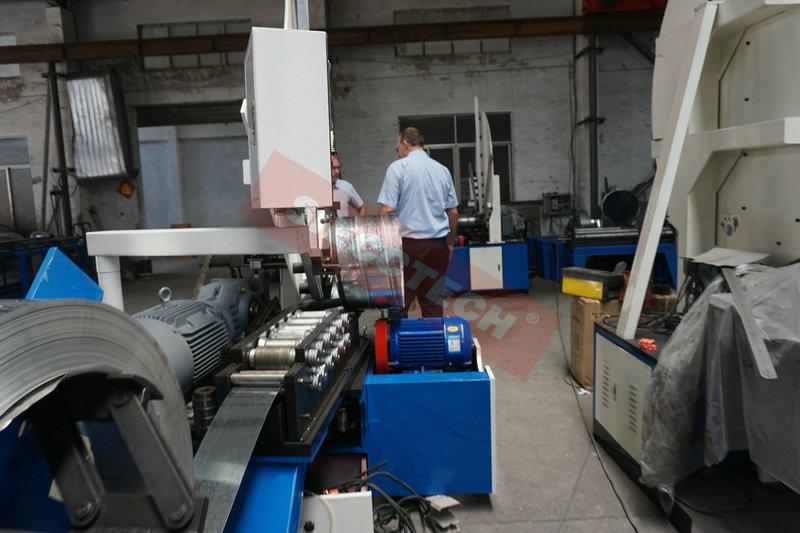

Home » Products » SPRIAL DUCT FORMING MACHINE » JX-2000A SPRIAL TUBE FORMING MACHINE

      Main technical data---  Round spiral pipe forming  machine

Diameter Range

200-20000mm

Maximum Tube Length

Unlimited mm

Thickness of Strip

0.4-2.0mm

Width of Strip

137mm

Strip Speed

1-36m/min

Suitable Material

Aluminum, Stainless steel, Galvanized steel,etc

Dimension (L x W x H)

2650mmx1550mmx2000mm

Weight

2200kg

Main Motor Power

11KW

Cutting Motor Power

4kW

Air Pressure

0.5-2.0Mpa
