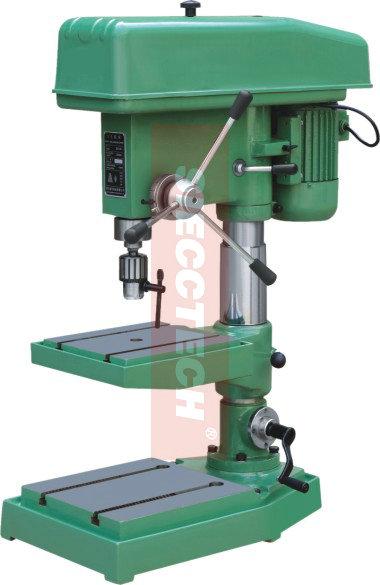

Home » Products » Bench Drill » Z4120 Bench Drill Machine
Model Unit Z4116 Z4120
Max.Drilling capacity mm 16 20
Diameter of column mm 85 85
Spindle travel mm 125 125
Distance spindle axis to column surface mm 240 240
Max.distance spindle nose to worktable mm 297 367
Max.distance spindle nose to base mm 560 630
Spindle taper   MT.2 MT.2
Spindle speeds range rpm 365-3150r 365-3150rpm
Spindle speeds step steps 5 5
Dimension of worktable surface mm 280×300 280×300mm
Dimension of base worktable surface mm 315×335 315×335mm
Overall height mm 1127 1127
Motor w 550 750
G.W./N.W. kg 162/129 162/129
Ship measurement cm 87×54×103 87×54×103
