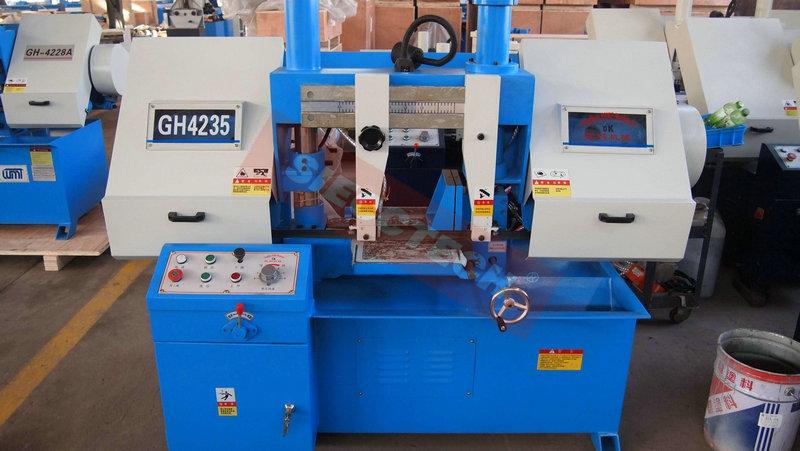

Home » Products » Band Saw » GH 4235

Feature:

1.Double column structure,high stability & rigidity

2.Hydraulic control of blade vertical feed speed, variable speeds

3.Hydraulic clamp of workpiece

4.manual tension of saw blade

5.saw blade is installed between vise, can clamp & cut ultra-thin workpiece

6. gantry type band sawing machine is mainly used for processing large workpieces with high eddiciency and accurancy.



Optional configuration:



1.Three hydraulic tensioning of saw blade;

2.Stepless linear speed of saw blade;

3.Saw blade break protection;

4.Fast drop protection;

5.Automatic hydraulic chip removal device.

MODEL NO   GH4220A GH4228 GH4235 GH4240 GH4250
Cutting capacity 200-200×200 280-280×280 350-350×350 400-400×400 500-500X500
Blade speed 27  45  69 27  45  69 27  45  69 5000×41×1.3 5800X41X13
Blade size 2800×27×0.9 3505×27×0.9 4115×34×1.1 27  45  69 27  45  69
Motor main 1.5 2.2 3 4 5.5
Motor hydraulic 0.55 0.55 0.55 0.75 0.75
Coolant pump 0.04 0.04 0.04 0.125 0.125
Workpiece clamping Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Size outward 1400×900×1100 1860×1000×1400 2000×1000×1300 2500×1300×1600 2800X1300X2000
