Home » Products » CM6241 SERIES LATHE MACHINE » CM6241 LATHE MACHINE

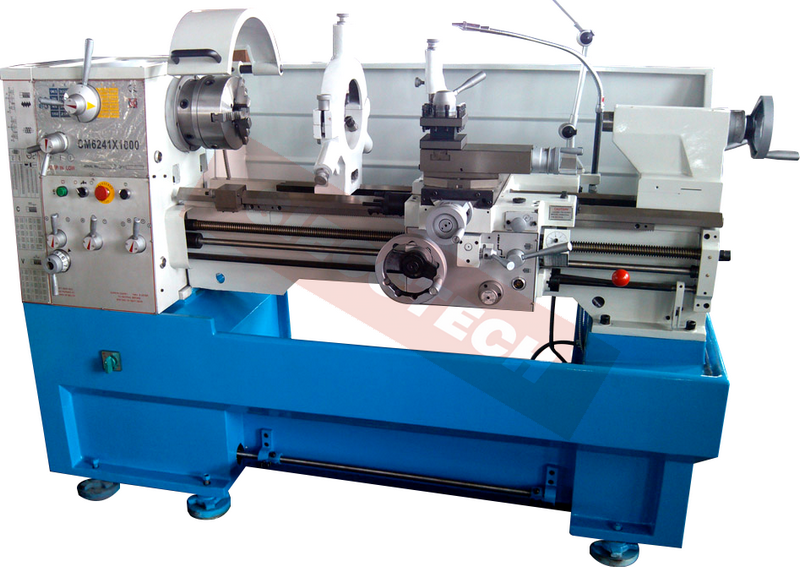

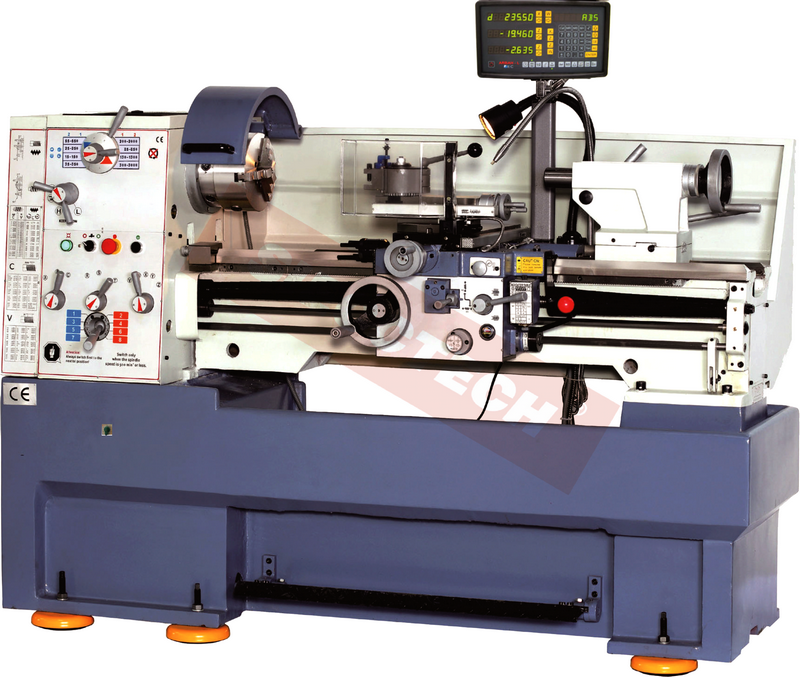

Model CM6241
Capacity Swing over bed 410mm 16.1"
Swing over cross slide 255mm 10.0"
Swing in gap 580mm 22.8"
Length of gap 190mm 7.5"
Distance between centers 1000mm/1500mm 39.4"/59.0"
Bed Width 250mm 9.8"
Headstock Spindle Nose D1-6
Spindle Bore 58mm 2.3"
Tarper of spindle bore No.6Morse
Range of spindle speed 16changes45-1800r/min
Travel Max.travel of top slide 140mm 5.5"
Max.travel of cross slide 210mm 8.3"
Leadscrew pitch
Max.section of tool 20*20mm 0.8*0.8"
Longitudinal feeds range 17kinds0.05-1.77mm/rev 0.002"-0.067"
Cross feeds range 17kinds0.0291-1.019mm/rev 0.001"-0.0335"
Feeds Metric threads range 39kinds0.2-14mm
Inch threads range 45kinds2-72T.P.I
Diametrical pitches range 21kinds8-44D.P.I
Module pitches range 18kinds0.3-3.5M.P.
Tailstock Dia.of tailstock sleeve 50mm 2.0"
Travel of tailstock sleeve 120mm 4.7"
Morse taper of tailstock sleeve No.4Morse
Motor Power of main motor 4P/8P,3PH3.3/2.2kw
Power of coolant pump 4P,3PH 90w
