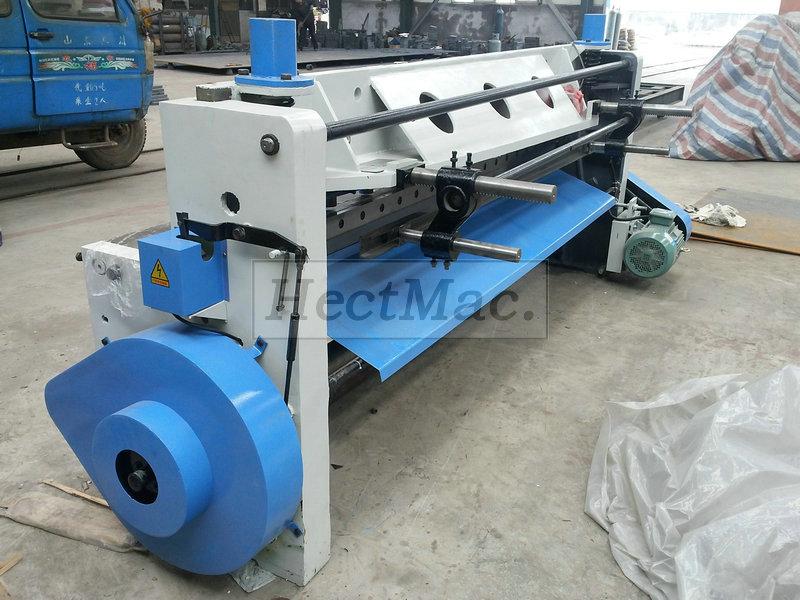

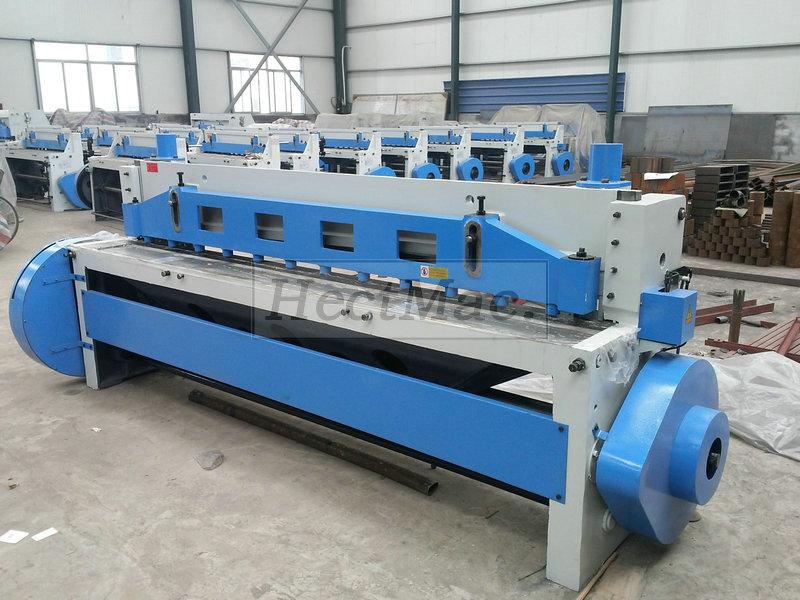

Home » Products » Electronic Shearing Machine » Q11 FLY WHEEL SHEAR MACHINE

1.Electric cutting Machine is used to cast components and has the advantages of producing firmly structured finished products, low center of gravity, sound vibration-proof performance, uniform transmission and stable property.



2. Its capacity range is from 1300 to 2500 mm length and the maximum thickness can reach 8 mm. Our electric shearing machine is used for shearing large and medium thickness plates.

Item No. 386001 386002 386003 386004 386005 386006
Model Q11-3x1300 Q11-3x1500 Q11-4x2000 Q11-6x2000 Q11-6x2500 Q11-8x2500
Max.shearing thickness(mm) 3 3 4 6 6 8
Max.shearing width(mm) 1300 1500 2000 2000 2500 2500
Shearing angle 1.42°
No.of stroke(per minute) 20 20 20 20 20 14
Motor power(kw) 3 3 5.5 7.5 11 11
Back gauge(mm) 350 350 500 500 500 500
Packing size(cm) 233x136x154 240x130x150 318x177x155 358x226x212 358x226x212 360x226x244
N.W./G.W.(kg) 1400/1550 1600/1750 3000/3200 4100/4300 5200/5500 6800/7150
